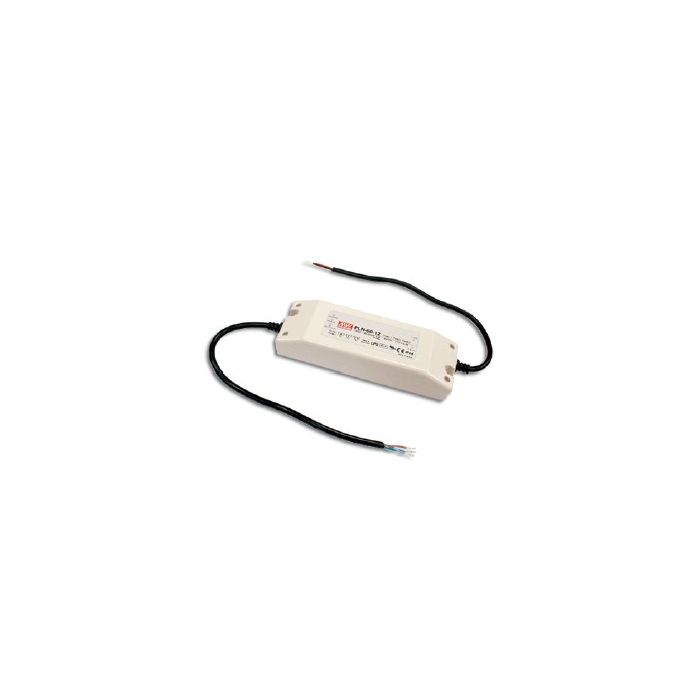

LED VOEDING 15V/2.00A 30W MET ACTIVE PFC IN IP64 BEHUIZING

€ 34,94 € 28,88
Artikelnummer
PLN3015
  • ArtikelnummerPLN3015
  • MerkMEANWELL
  • Aantal 3+   € 33,19 € 27,43
Print deze pagina Print deze pagina
Features

• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• IP64, for indoor and outdoor installations
• Suitable for LED lighting and moving sign applications
• Fixed output voltage



Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 1100....120%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+50°C
Weight: 220g
Dimensons 181x61.5x35mm (LxWXH)

Output Voltage: 15Vdc
Output Current Range: 0 - 2,0A
Output Power: 30W
Output Voltage Tolerance: 10%
Ripple & Noise: 2,6Vp-p
Typ. Efficiency: 84%
