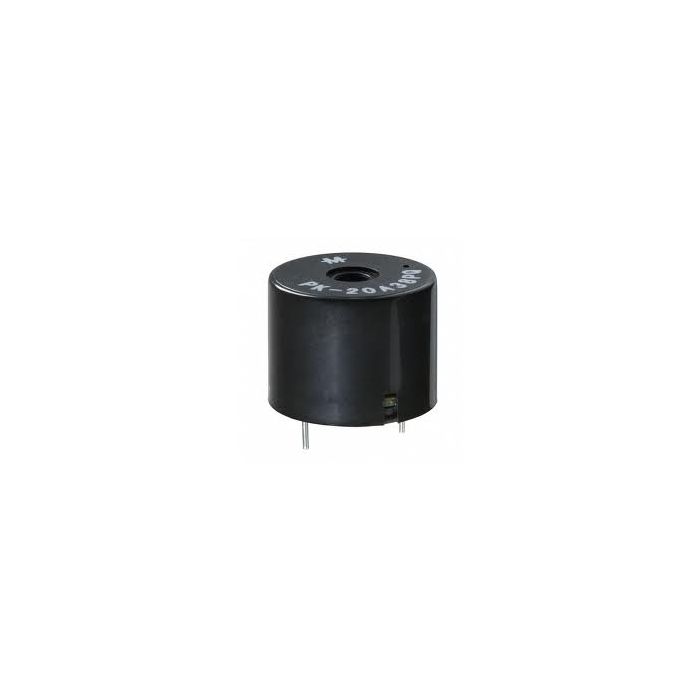

PIEZO 12VDC/12MA/3.8KHZ/85DB 5 STUKS
€ 7,74
€ 6,40
Artikelnummer
PK20N38PQ
- ArtikelnummerPK20N38PQ
- MerkHITPOINT
- Aantal 5+ € 6,97 € 5,76
Features
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
For PC assembly
FR = Resonant Frequency (±0,5); 3,8 kHz
Umax = Max. Operating Voltage: 3,0...28 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 85dB
IA = Current Consumption: 12mA
TB = Operating Temperature Range: -20...+70°C
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
For PC assembly
FR = Resonant Frequency (±0,5); 3,8 kHz
Umax = Max. Operating Voltage: 3,0...28 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 85dB
IA = Current Consumption: 12mA
TB = Operating Temperature Range: -20...+70°C
