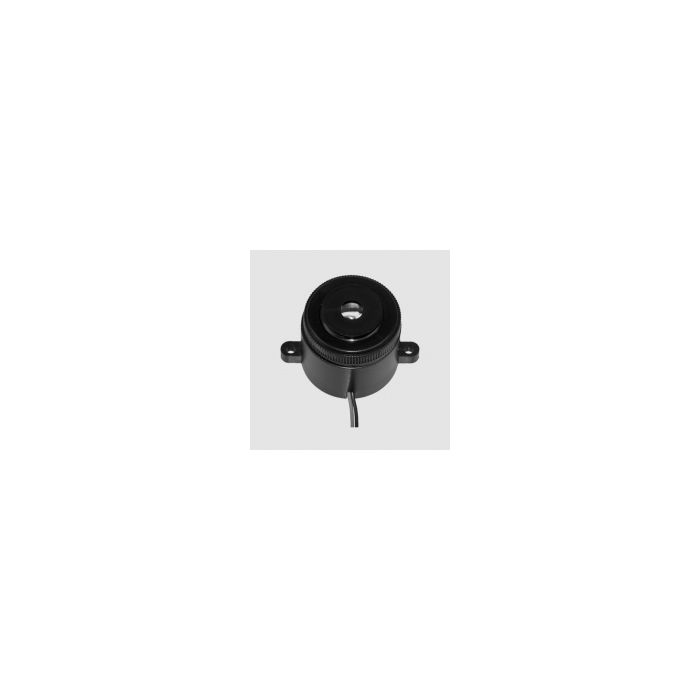

PIEZO 3-24VDC/10MA/3.5KHZ/95DB
€ 3,94
€ 3,26
Artikelnummer
PK20A35EWQ
- ArtikelnummerPK20A35EWQ
- MerkHITPOINT
- Aantal 5+ € 3,55 € 2,93
Features
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
FR = Resonant Frequency (±0,5); 3,5 kHz
Umax = Max. Operating Voltage: 3,0...24 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 95dB
IA = Current Consumption: 10mA
TB = Operating Temperature Range: -20...+70°C
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
FR = Resonant Frequency (±0,5); 3,5 kHz
Umax = Max. Operating Voltage: 3,0...24 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 95dB
IA = Current Consumption: 10mA
TB = Operating Temperature Range: -20...+70°C
