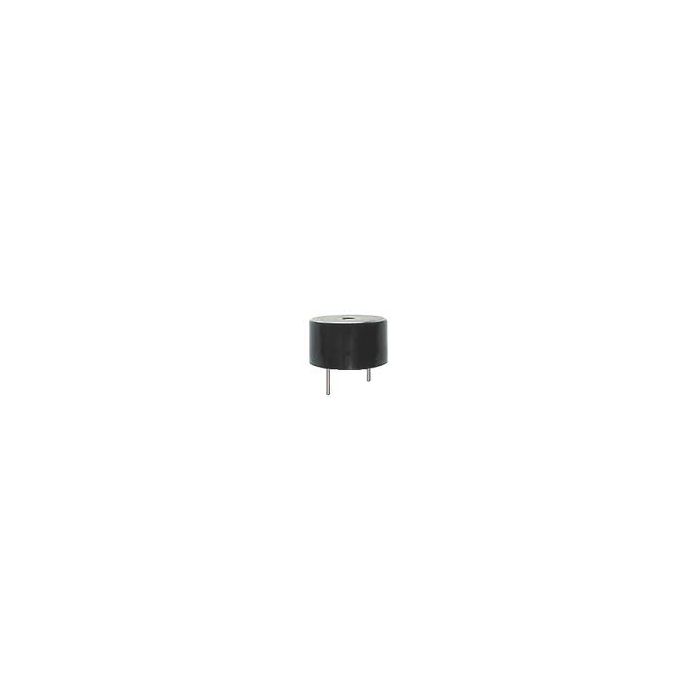

PIEZO 12VDC/10MA/4.1KHZ/83DB
€ 1,95
€ 1,61
Artikelnummer
PK12N40PAQ
- ArtikelnummerPK12N40PAQ
- MerkHITPOINT
- Aantal 5+ € 1,74 € 1,44
Features
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
For PC assembly
FR = Resonant Frequency (±0,5); 4,1 kHz
Umax = Max. Operating Voltage: 3,0...15 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 83dB
IA = Current Consumption: 10mA
TB = Operating Temperature Range: -20...+70°C
Low current consumption
Extremely clear and penetrating sound
Built-in drive circuit
Extended operating voltage range
For PC assembly
FR = Resonant Frequency (±0,5); 4,1 kHz
Umax = Max. Operating Voltage: 3,0...15 Vdc
SPLmin= Min. S.P.L. (5V Square Wave, dbmin/10cm): 83dB
IA = Current Consumption: 10mA
TB = Operating Temperature Range: -20...+70°C
