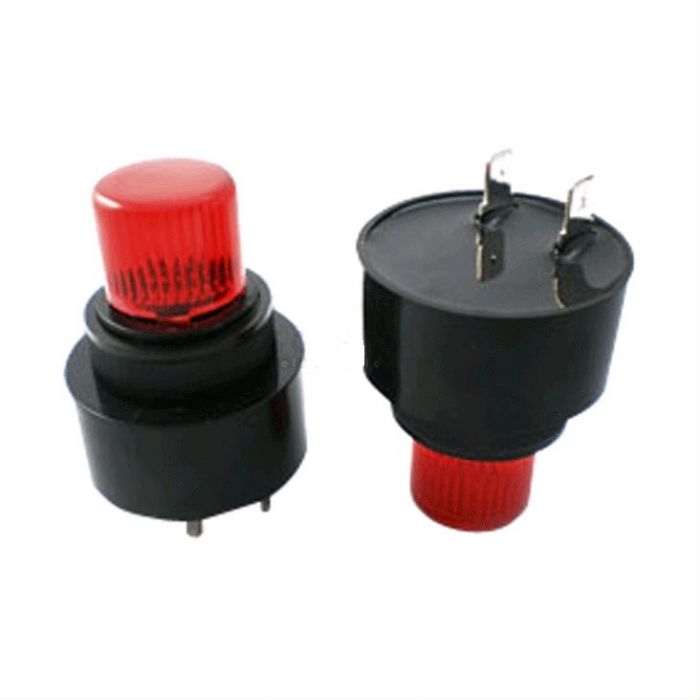

PIEZO 48VDC/AC 20MA/2.9KHZ/90DB MET LED ROOD SNELLE TOON5 STUKS
€ 35,50
€ 29,34
Artikelnummer
PF35A29048
- ArtikelnummerPF35A29048
- MerkHITPOINT
- Aantal 5+ € 31,96 € 26,41
Features
| • Generates a visible and and accoustic signal a the same time • Very good signaling effect • Built-in drive circuit • Extended operating voltage range • Solder lug terminals |
 |
| Technical Specifications |
|
|
| Oscillation Frequency: | 2,9kHz (±0,5) |
| Operating Temperature Range: | -20...+70°C |
| Material | |
| Housing: | ABS |
| Pins: | Tin plated brass |
| LED Colour: | Red |
|
|
| Part No. | UR | UO | IC | SPLmin | Tone/Pulse Rate |
| [V DC/AC] | [V DC/AC] | [mA] | [dB] | ||
| PF35A2924 | 24 | 6...28 | 20 | 90 | Fast Pulse 3,0 |
| PF35A2948 | 48 | 37...52 | 20 | 90 | Fast Pulse 3,0 |
| PF35A29110 | 110 | 80...132 | 20 | 90 | Fast Pulse 3,0 |
| PL35A29220 | 220 | 200...240 | 20 | 90 | Slow Pulse 1,2 |
| PF35A29220 | 220 | 200...240 | 20 | 90 | Fast Pulse 3,0 |
| UR = Rated Voltage, UO = Operation Voltage Range, IC = Current Consumption, max. (@ UR), SPLmin = Sound Pressure Level, min. (at 30cm @ UR) | |||||
|
|||||
| Labelling |
 |
