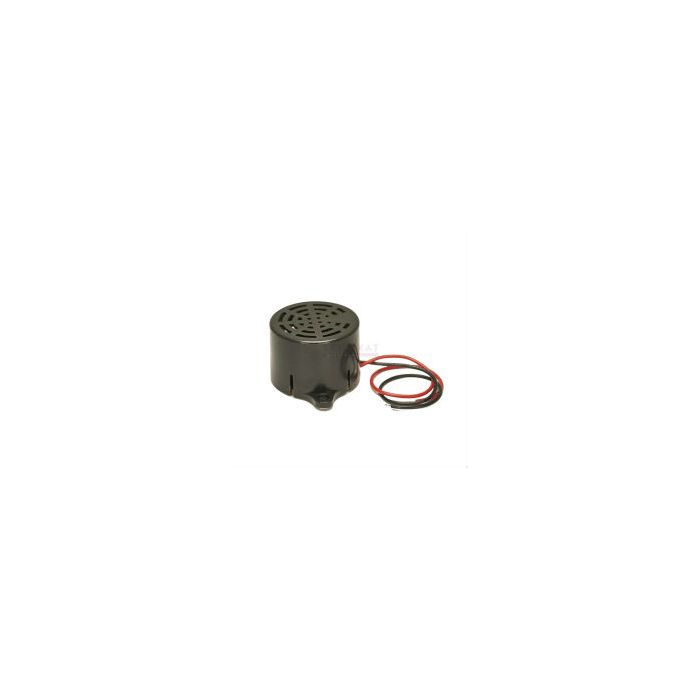

PIEZO 4-9VDC/15MA/2.8KHZ/90DB KONSTANT
€ 5,95
€ 4,92
Artikelnummer
RMP28SW06K
- ArtikelnummerRMP28SW06K
- MerkEKULIT
- Aantal 5+ € 5,35 € 4,42
| Features |
| • Powerful Piezo Buzzer with mounting tabs • Built-in drive circuit • Wire connection terminals |
 |
| Technical Specifications |
| Part No. | FR | UR | UO | SPLmin | IC | TO |
| [kHz] | [V DC] | [V DC] | [dB] | [mA] | [°C] | |
| RMP28SW01P | 2,8 | 1,5 | 1...3 | 70 | 20 | -20...+70 |
| RMP28SW01K | 2,8 | 1,5 | 1...3 | 80 | 15 | -20...+70 |
| RMP28SW03P | 2,8 | 3,0 | 2..5 | 75 | 15 | -20...+70 |
| RMP28SW03D | 2,8 | 3,0 | 2..5 | 85 | 10 | -20...+70 |
| RMP28SW06P | 2,8 | 6,0 | 4...9 | 80 | 15 | -20...+70 |
| RMP28SW06K | 2,8 | 6,0 | 4...9 | 90 | 15 | -20...+70 |
| RMP28SW09P | 2,8 | 9,0 | 6...11 | 80 | 20 | -20...+70 |
| RMP28SW09K | 2,8 | 9,0 | 6...11 | 90 | 20 | -20...+70 |
| RMP28SW12P | 2,8 | 12 | 8...15 | 85 | 25 | -20...+70 |
| RMP28SW12K | 2,8 | 12 | 9...15 | 95 | 25 | -20...+70 |
| RMP28SW24P | 2,8 | 24 | 15...28 | 85 | 25 | -20...+70 |
| RMP28SW24K | 2,8 | 24 | 15...28 | 95 | 25 | -20...+70 |
| FR = Resonant Frequency (±0,1=RMP-28SW_, ±0,5=RMP-23SW, RMP-23SW-FL, ±0,3=RMP-27SW), UR = Rated Voltage, UO = Operating Voltage Range, SPLmin = Min. Sound Output (@UN, dBmin/30cm=RMP-28SW_, RMP-23SW, RMP-23SW-FL, dBmin/10cm=RMP-27SW), IC = Max. Current Consumption (@UN), TO = Operating Temperature Range | ||||||
|
||||||
| Part No. | Tone | Puls Rate @UN |
| [Pulse/Sec] | ||
| RMP28SW01P | Pulse | 2...7 |
| RMP28SW01K | Single | - |
| RMP28SW03P | Pulse | 2...7 |
| RMP28SW03K | Single | - |
| RMP28SW06P | Pulse | 2...7 |
| RMP28SW06K | Single | - |
| RMP28SW09P | Pulse | 2...7 |
| RMP28SW09K | Single | - |
| RMP28SW12P | Pulse | 2...7 |
| RMP28SW12K | Single | - |
| RMP28SW24P | Pulse | 2...7 |
| RMP28SW24K | Single | - |
|
||
