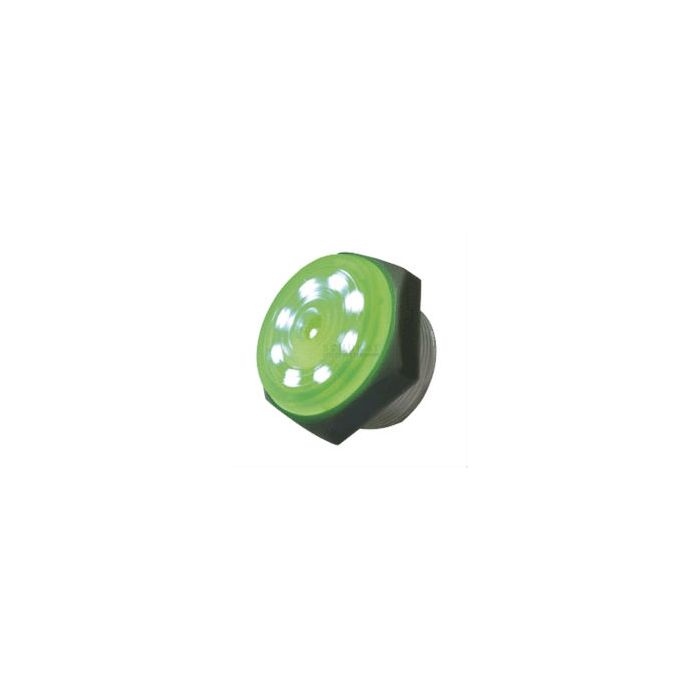

PIEZO 12VDC/18MA/3.5KHZ/95DB MET 8 X LED GROEN SNELLE TOON5 STUKS
€ 32,95
€ 27,23
Artikelnummer
PF27A35GQ
- ArtikelnummerPF27A35GQ
- MerkHITPOINT
- Aantal 5+ € 29,65 € 24,50
Features
| • Generates a visible and and accoustic signal a the same time • Very good signaling effect • Built-in drive circuit • Extended operating voltage range • Solder lug terminals |
 |
| Technical Specifications |
|
|
| Operating Temperature Range: | -20...+70°C |
| Material | |
| Housing: | Plastic |
| Pins: | Tin plated brass |
|
|
| Part No. | LED Colour | Tone/Pulse Rate |
| PK-27A35GQ | Green | Constant |
| PK-27A35RQ | Red | Constant |
| PK-27A35YQ | Yellow | Constant |
| PL-27A30GQ | Green | Slow Pulse 1,21) |
| PL-27A30RQ | Red | Slow Pulse 1,21) |
| PL-27A30YQ | Yellow | Slow Pulse 1,21) |
| PF-27A35GQ | Green | Fast Pulse 3,0 |
| PF-27A35RQ | Red | Fast Pulse 3,0 |
| PF-27A35YQ | Yellow | Fast Pulse 3,0 |
| 1) ±20% @UN | ||
|
||
| Part No. | FO | UR | UO | IC | SPLmin |
| [kHz] | [V DC] | [V DC] | [mA] | [dB] | |
| PK-27A35GQ | 3,5 | 12 | 3...15 | 18 | 952) |
| PK-27A35RQ | 3,5 | 12 | 3...15 | 18 | 952) |
| PK-27A35YQ | 3,5 | 12 | 3...15 | 18 | 952) |
| PL-27A30GQ | 3 | 12 | 3...15 | 25 | 951) |
| PL-27A30RQ | 3 | 12 | 3...15 | 25 | 951) |
| PL-27A30YQ | 3 | 12 | 3...15 | 25 | 951) |
| PF-27A35GQ | 3,5 | 12 | 3...15 | 18 | 951) |
| PF-27A35RQ | 3,5 | 12 | 3...15 | 18 | 951) |
| PF-27A35YQ | 3,5 | 12 | 3...15 | 18 | 951) |
| FO = Oscillation Frequency (±0,5), UR = Rated Voltage, UO = Operation Voltage Range, IC = Current Consumption, max. (@ UR), SPLmin = Sound Pressure Level, min. (1)at 30cm @ UR, 2)at 10cm @ UR) | |||||
|
|||||
| Labelling |
 |
