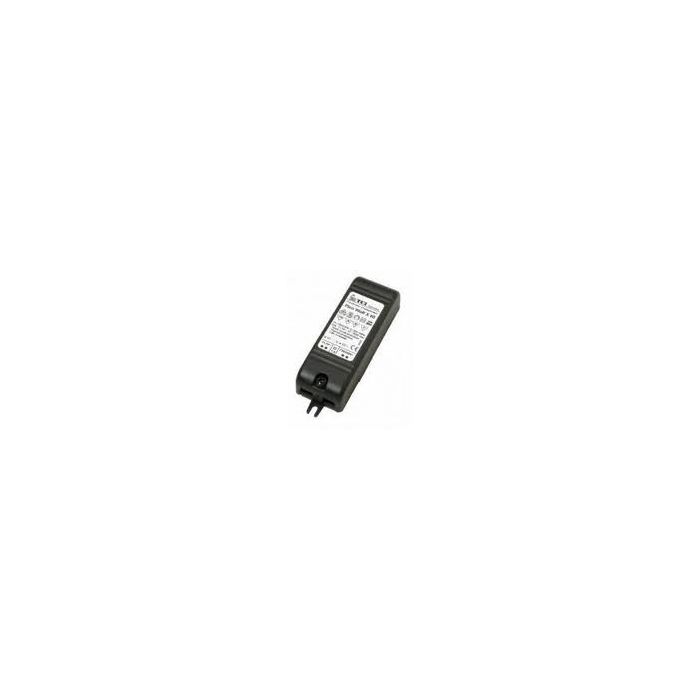

HALOGEEN TRAFO 230V 20-105W 11,5V
€ 19,95
€ 16,49
Artikelnummer
PICO105W
- ArtikelnummerPICO105W
- MerkTCI
- Aantal 5+ € 17,96 € 14,84
Halogeen trafo
Ingangsspanning: 230VAC 50/60Hz
Uitgangsspanning: 12V
Vermogen 20-105W
Afmeting : L107 x B35 x H21mm
IP20 independent transformer, for halogen lamps
12 V.
Class II protection against electric shock
following direct and indirect contact.
Very compact size.
Supplied with terminal cover and cable retainer.
Inlet and outlet terminals on the same side
(2,5 mm2 terminal area).
Clamping screws on primary and secondary
circuits for cables with diameter:
3 mm. min. 8 mm. max.
Cable unsheathing 18 mm. max.
The transformer can be secured by means of
threaded slots.
Protected against overheating and short-circuits.
Protected against mains voltage spikes.
Protceted against overloads.
Ingangsspanning: 230VAC 50/60Hz
Uitgangsspanning: 12V
Vermogen 20-105W
Afmeting : L107 x B35 x H21mm
IP20 independent transformer, for halogen lamps
12 V.
Class II protection against electric shock
following direct and indirect contact.
Very compact size.
Supplied with terminal cover and cable retainer.
Inlet and outlet terminals on the same side
(2,5 mm2 terminal area).
Clamping screws on primary and secondary
circuits for cables with diameter:
3 mm. min. 8 mm. max.
Cable unsheathing 18 mm. max.
The transformer can be secured by means of
threaded slots.
Protected against overheating and short-circuits.
Protected against mains voltage spikes.
Protceted against overloads.
