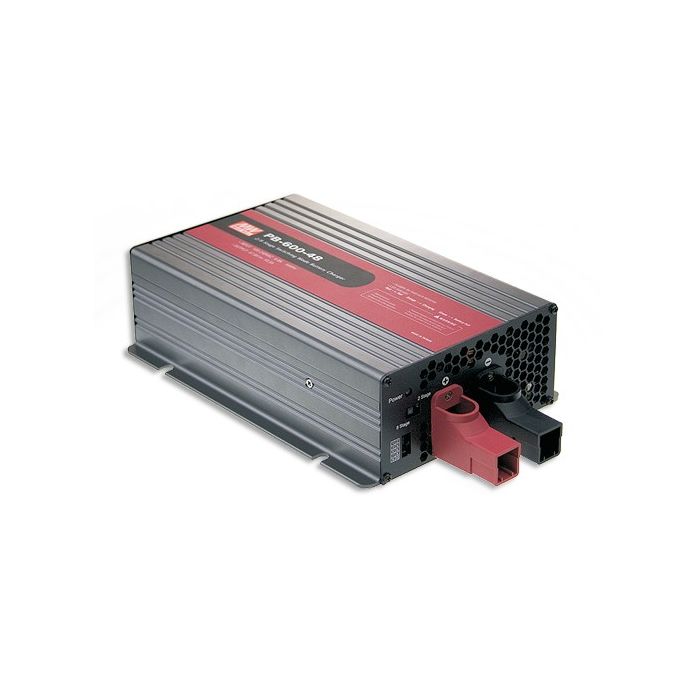

ACCULADER 57,6V 10.5A VOOR LEAD-ACID ACCU'S
€ 345,00
€ 285,12
Artikelnummer
PB60048
- ArtikelnummerPB60048
- MerkMEANWELL
- Aantal 2+ € 327,74 € 270,86
Features
2/8 stage charger for lead acid batteries
Universal AC input / Full range
Built-in active PFC function
2/8 stage charger selected by switch
Relay contacts for \"Charging ok\" and \"Output ok\"
Protection: reverse polarity/short circuit/over voltage/over temperature
Built-in remote ON-OFF control
3 color LED loading indicator
Operating Temperature: -20...+60°C
Storage Temperature: -40...+85°C
Insulation Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 500V DC: 100MOhm
Dimensions: 230x158x67mm
Weight: 2,20kg
I/P = Input, O/P = Output, FG = Frame Ground
Input
Input Voltage: 90...264VAC 47...63Hz
AC Current (230V): 3.4A
In-Rush Current, Cold Start (230V): 650A
Output
Boost Charge Voltage: 57,6V
Float Charge Voltage: 54,4V
Output Current, max: 10,5A
Efficiency: 89%
Recommended Battery Capacity: 35...105Ah
