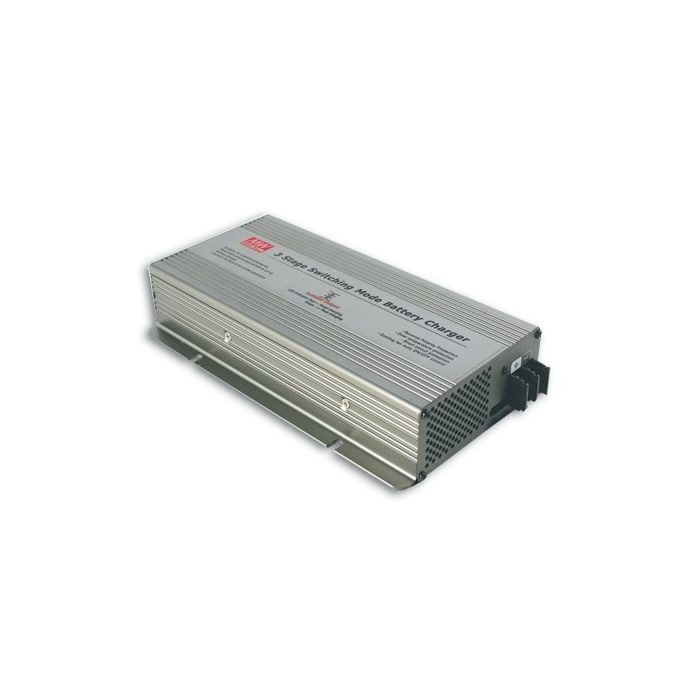

ACCULADER 28,8V 10,5A VOOR LEAD-ACID ACCU'S

Features

• 3 stage charger for lead acid batteries
• Input voltage range: 90...132V/180...264V AC
• AC 115/230VAC selected by switch
• Overload protection, constant current limiting, reset: auto recovery
• Protection: reverse polarity/short circuit/over voltage/over temperature
• 2 color LED loading indicator

Operating Temperature: -10...+40°C
Storage Temperature: -40...+85°C
Overload Protection: 90...110%
Insulation Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC

Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 500V DC: 100MOhm
Dimensions: 253x135x48,5mm
Weight: 1,45kg
I/P = Input, O/P = Output, FG = Frame Ground

Input
Input Voltage: 90...132V AC / 180...264VAC
47...63Hz
AC Current (230V): 3A
In-Rush Current, Cold Start (230V): 60A

Output
Boost Charge Voltage: 28,8V
Float Charge Voltage: 27,2V
Output Current, max: 10,5A
Continuous Current: 6,25A
Efficiency: 86%
Recommended Battery Capacity: 40...125Ah
