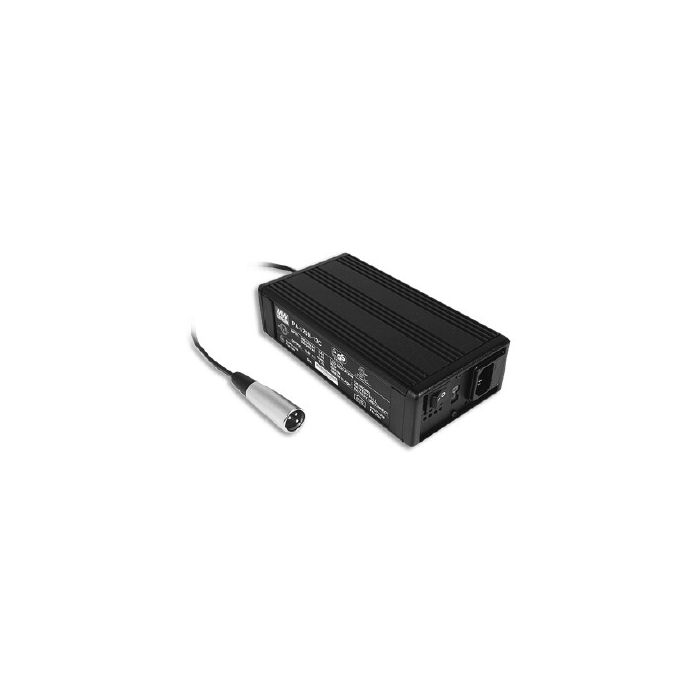

ACCULADER 27,6V 4,3A VOOR LEAD-ACID ACCU'S

Features
• 2 stage charger for lead acid batteries
• Input voltage range: 90...132V/180...264V AC
• AC 115/230V AC selected by switch
• Built-in On/Off power switch
• Overload protection, current limiting, auto recovery
• Protection: reverse polarity/short circuit/over voltage/over temperature
• 2 color LED loading indicator
• 3-poles AC inlet with fuse holder

Operating Temperature: -10...+45°C
Storage Temperature: -20...+85°C
Overload Protection: 90...110%
Insulation Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC

Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 500V DC: 100MW
Dimensions: 144x90x33mm
Weight: 1,1kg
I/P = Input, O/P = Output, FG = Frame Ground

Input
Input Voltage: 90...132V AC / 180...264VAC
47...63Hz
AC Current (230V): 1,5A
In-Rush Current, Cold Start (230V): 50A

Output
Output Voltage : 27,6V
Output Current Range: 0...4,3A
Output Power: 118,6W
Efficiency: 79%
