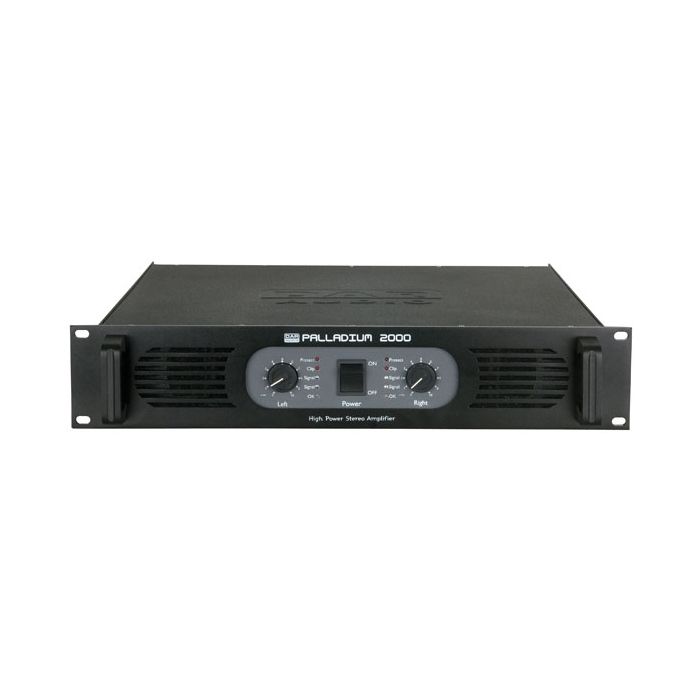

PALLADIUM 2U VERSTERKER POWER MOSFET 2X1000W RMS 4OHM

2U High Power Double Class-H Stereo PA Amplifier, Black


• Very affordable and reliable power
• Over 8 years of proven quality
• XLR and Jack inputs
• Speakon and terminal outputs




The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. After almost 10 years production time and the 50.000th palladium it's time for a little face lift. You can now choose if you like the silver vintage look or the new black look. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need

Specifications
Output Power, 1000 Hz, THD+N at 1%,
Both Channels Driven:

Stereo mode: 8 Ohm: 2x 700 Watt RMS
4 Ohm: 2x 1050 Watt RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 2100 Watt RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45,000 Hz, -1 dB
THD+N: < 0.05%
Intermodul. Distortion: < 0.01%
Damping Factor at 8 Ohm: > 300
Slew Rate: > 40 V/µS
Input CMRR: > 60 dB
Crosstalk 20 - 20,000 Hz: > 60 dB
Signal to Noise Ratio: > 105 dB A-weighted
Input Sensitivity: 1 V~, +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 kOhm Balanced
10 kOhm Unbalanced

Protection: Clip Limiter (Fixed)
Short Circuit
Input Overload
Output Overload
DC Voltage
High Temperature
Soft Start

Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back
Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Groundlift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 19 kg
Power Supply: 200 - 240 V~, 50 Hz
Main Fuse: 15AT, 5 x 20 mm
Power Consump. (2 x 4 Ohm): 2925 Watt
