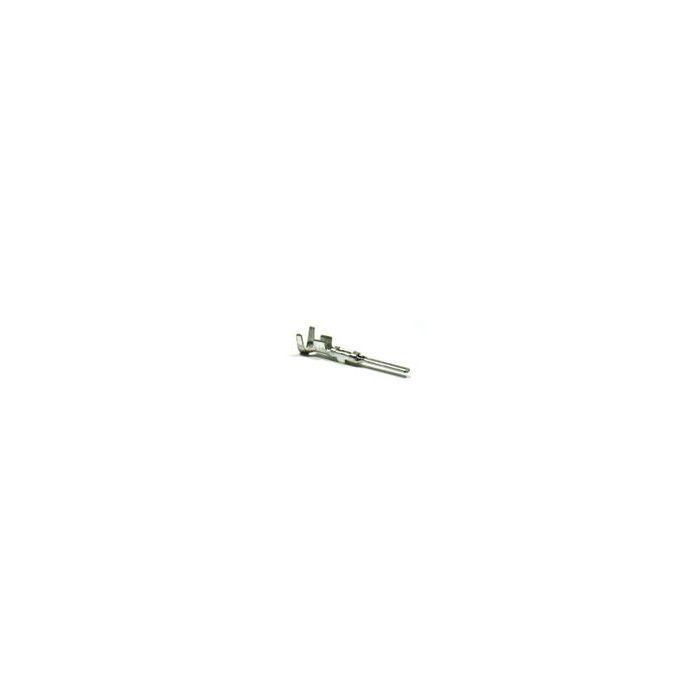

PENKONTAKT 0.75-1,5MM2
€ 0,34
€ 0,28
Artikelnummer
P183024
- ArtikelnummerP183024
- MerkTYCO/AMP
- Aantal 10+ € 0,30 € 0,25
CRIMP PIN, TAB, 20-15AWG
Connector Type:Contact, Crimp
Series:SUPERSEAL
Current Rating:14A
Contact Plating:Tin
Contact Material:Brass
Gender:Plug
Contact Termination:Crimp
Connector Type:Contact, Crimp
Contact Material:Brass
Contact Plating:Tin
Max Cable Diameter:3.3mm
Max Wire Area Size:1.5mm²
Max Wire Size AWG:16AWG
Min Cable Diameter:1.8mm
Min Wire Area Size:0.75mm²
Min Wire Size AWG:18AWG
Termination Method:Crimp
Contact Style:Pin
Connector Type:Contact, Crimp
Series:SUPERSEAL
Current Rating:14A
Contact Plating:Tin
Contact Material:Brass
Gender:Plug
Contact Termination:Crimp
Connector Type:Contact, Crimp
Contact Material:Brass
Contact Plating:Tin
Max Cable Diameter:3.3mm
Max Wire Area Size:1.5mm²
Max Wire Size AWG:16AWG
Min Cable Diameter:1.8mm
Min Wire Area Size:0.75mm²
Min Wire Size AWG:18AWG
Termination Method:Crimp
Contact Style:Pin
