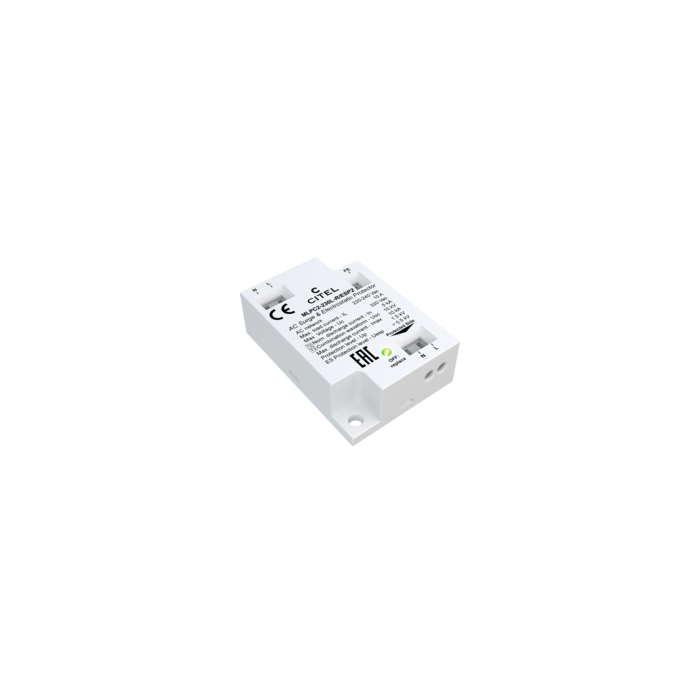

OVERSPANNINGSBEVEILIGING 320VAC/5A CLASS II IP20

€ 18,95 € 15,66
Artikelnummer
MLPC2-230L
  • ArtikelnummerMLPC2-230L
  • MerkCITEL
  • Aantal 5+   € 17,05 € 14,09
Print deze pagina Print deze pagina

Features

• Compact Type 2+3 surge protectors
• MLPC1_, MLPX1_: for protection class I
• MLPC2_, MLPX2_: for protection class II (without grounding)
• MLPC_: spring terminal connection
• MLPX_: wire connection
• MLPX_-230L-W: double insulated housing and cables (IP67)
• Status indicator
• End of life AC disconnection
• EN/IEC 61643-11 and VDE0675 compliance
• Particularly suitable for final circuits: z. B. LED lighting
• Protection against overvoltages from the grid as well as against earth-bound potential increases (SKL I)
• For installation in a final equipment
• Mounting directly on or in the immediate vicinity of protective equipment
Technical Specifications

Protected Phases: 1
SPD Type: 2+3
Leakage Current, Max.: 10kA
Protection Level: 1500V
Protection Class
MLPC1_, MLPX1_: I
MLP2_, MLPX2_: II
Protection Rating
MLPC_, MLPX_-230L-W/IP20: IP20
MLPX_-230L-W: IP67
Circuit Isolation: Yes
Termination
MLPC1_, MLPC2_: Spring Terminal
MLPX1_, MLPX2_: Wire
Operating Temperature: -40...+85°C
