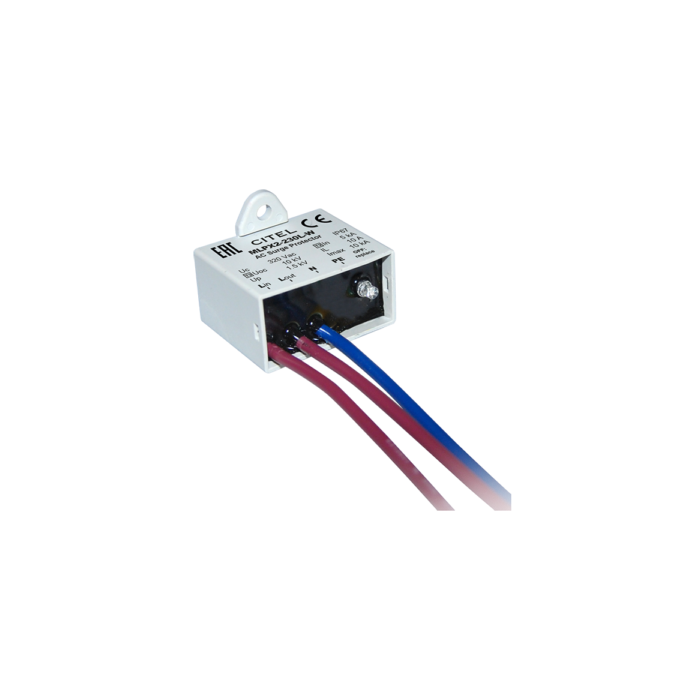

OVERSPANNINGSBEVEILIGING 320VAC/10A CLASS II IP67
€ 23,95
€ 19,79
Artikelnummer
MLPX2-230L
- ArtikelnummerMLPX2-230L
- MerkCITEL
- Aantal 5+ € 21,55 € 17,81
eatures
| • Compact Type 2+3 surge protectors • MLPC1_, MLPX1_: for protection class I • MLPC2_, MLPX2_: for protection class II (without grounding) • MLPC_: spring terminal connection • MLPX_: wire connection • MLPX_-230L-W: double insulated housing and cables (IP67) • Status indicator • End of life AC disconnection • EN/IEC 61643-11 and VDE0675 compliance • Particularly suitable for final circuits: z. B. LED lighting • Protection against overvoltages from the grid as well as against earth-bound potential increases (SKL I) • For installation in a final equipment • Mounting directly on or in the immediate vicinity of protective equipment |
 |
| Technical Specifications |
|
|
| Protected Phases: | 1 |
| SPD Type: | 2+3 |
| Leakage Current, Max.: | 10kA |
| Protection Level: | 1500V |
| Protection Class | |
| MLPC1_, MLPX1_: | I |
| MLP2_, MLPX2_: | II |
| Protection Rating | |
| MLPC_, MLPX_-230L-W/IP20: | IP20 |
| MLPX_-230L-W: | IP67 |
| Circuit Isolation: | Yes |
| Termination | |
| MLPC1_, MLPC2_: | Spring Terminal |
| MLPX1_, MLPX2_: | Wire |
| Operating Temperature: | -40...+85°C |
