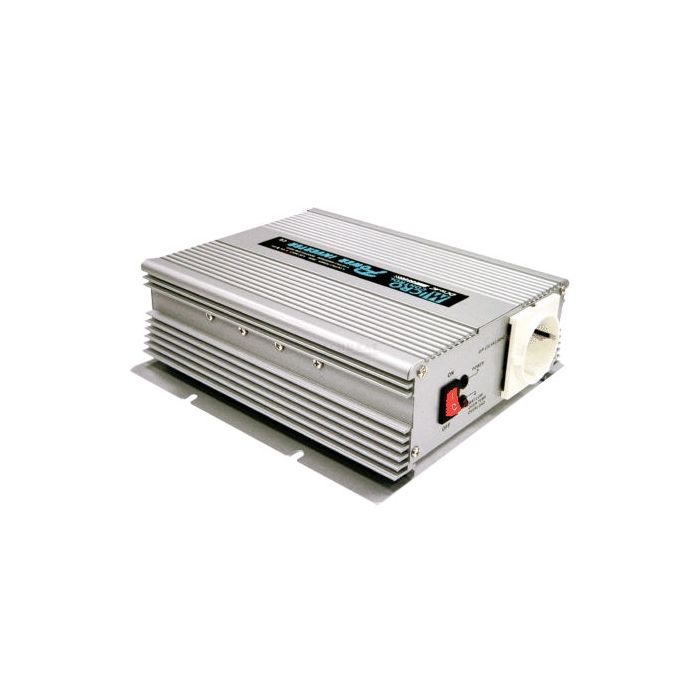

OMVORMER 24VDC-230VAC 600W GEMODIFICEERDE SINUSGOLF

Features

• Modified sine wave output • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • Built-in fan On/Off control function

Input Voltage:	See Table
Output Voltage:	230V AC
Output Voltage Tolerance:	±10%
Output Frequency:	50Hz ±1%
Output Rated Power:	600W
Peak Power:	1200W
Wave Form:	Modified Sine Wave
Overvoltage
A301-600-F3:	15...17V
A302-600-F3:	30...32V
Operating Temperature
100% Load:	0...+30°C
50% Load:	0...+40°C
Weight:	2100g

Part Nr.	UE	IE	UBA	UBL	h
	[V]	[A]	[V]	[V]	[%]
A301-600-F3	10...15	0...60	10±0,5	9,5±0,5	82
A302-600-F3	21...30	0...30	21±1	20±1	85
UE = Input Voltage Range, IE = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency

Before using the DC/AC converter, please ensure that your terminal equipment has been approved by the manufacturer for operation with modified sine-wave voltage (trapezoid).
