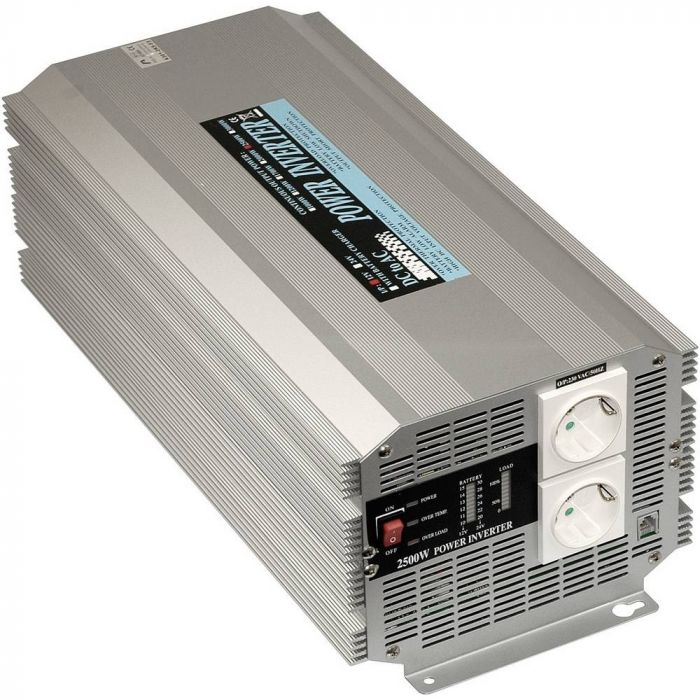

OMVORMER 24VDC-230VAC 2500W GEMODIFICEERDE SINUSGOLF
€ 799,00
€ 660,33
Artikelnummer
A302-2K5
- ArtikelnummerA302-2K5
- MerkMEANWELL
- Aantal 4+ € 719,09 € 594,29
Features
| • Modified sine wave output • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • Built-in fan On/Off control function |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Output Voltage: | 230V AC |
| Output Frequency: | 50Hz ±1% |
| Output Rated Power: | 2500W |
| Output Surge Power: | 5000W |
| Wave Form: | Modified Sine Wave |
| Overvoltage | |
| A301-2K5-F3: | 15...17V |
| A302-2K5-F3: | 30...32V |
| Operating Temperature | |
| 100% Load: | 0...+25°C |
| Weight: | 8700g |
|
|
| Part Nr. | UE | IE | UBA | UBL | h |
| [V] | [A] | [V] | [V] | [%] | |
| A301-2K5-F3 | 10...15 | 250 | 10±0,5 | 9,5±0,5 | 82 |
| A302-2K5-F3 | 21...30 | 130 | 21±0,8 | 20±0,8 | 85 |
