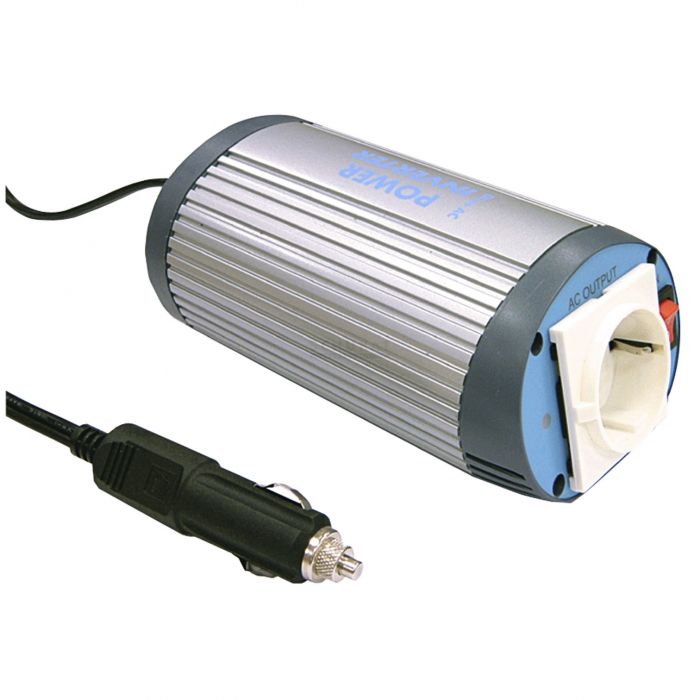

OMVORMER 24VDC-230VAC 150W GEMODIFICEERDE SINUSGOLF
€ 74,95
€ 61,94
Artikelnummer
A302-150F3
- ArtikelnummerA302-150F3
- MerkMEANWELL
- Aantal 4+ € 67,45 € 55,74
Features
| • Modified sine wave output • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • High surge power up to 300W |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Output Voltage, Selectable: | 230V AC |
| Output Voltage Tolerance: | ±10% |
| Output Frequency: | 50Hz ±1% |
| Output Rated Power: | 150W |
| Peak Power: | 300W |
| Wave Form: | Modified Sine |
| Operating Temperature | |
| 100% Load: | 0...+30°C |
| 50% Load: | +40°C |
| Weight: | 800g |
|
|
| Part Nr. | UE | IE | UBA | UBL | h |
| [V] | [A] | [V] | [V] | [%] | |
| A301-150-F3 | 10...15 | 15 | 10±0,5 | 9,5±0,5 | 78 |
| A302-150-F3 | 30...32 | 10 | 20,5±1 | 19,5±1 | 82 |
| UE = Input Voltage, IA = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency | |||||
