Product toegevoegd aan winkelwagen

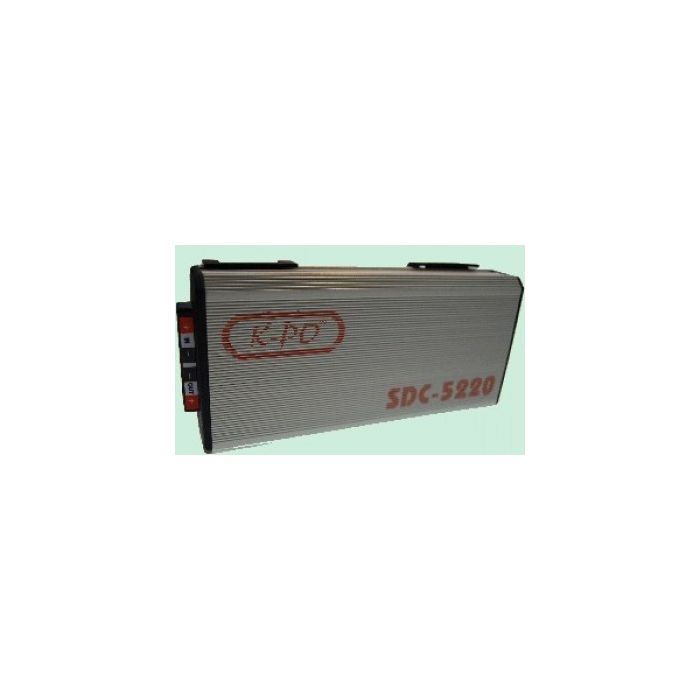

OMVORMER 24VDC-13.8VDC 20A GESCHAKELD
€ 79,94
€ 66,07
Artikelnummer
SDC5220
- ArtikelnummerSDC5220
- MerkMANSON
- Aantal 5+ € 71,95 € 59,46
Specifications
Input Voltage Range: 18Vdc to 38Vdc
Output Voltage: 13.2Vdc
Continuous Output Current: 18A
Maximum Output Current at 30% Duty Cycle: 20A
No Load Current: <80mA
Ripple & Noise (p-p): <300mV
Ripple & Noise (r.m.s.): <25mV
Load Regulation: <100mV
Line Regulation: <50mV
Efficiency: >90%
Protections: OVP (Output Over-Voltage Protection), Loss of Earth Protection, Self Reset Protection: a) Reverse Polarity Protection, b) Overload Protection, c) Short Circuit Protection
Indications: Green LED-OPERATE and Red LED-FAULT
Input & Output Connection type: Push-on Flat Blade Connectors
Cooling System: Natural Convection
Max. Operating Temperature: 50 Celsius
