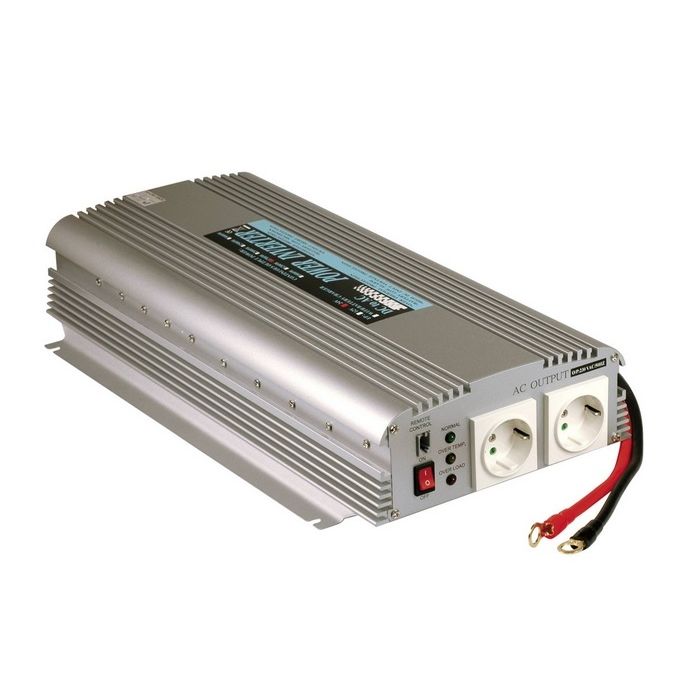

OMVORMER 12VDC-230VAC 1700W GEMODIFICEERDE SINUSGOLF
€ 439,00
€ 362,81
Artikelnummer
A301-1K7
- ArtikelnummerA301-1K7
- MerkMEANWELL
- Aantal 5+ € 395,09 € 326,52
Features
| • Modified sine wave output • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • Built-in fan On/Off control function |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Output Voltage: | 230V AC |
| Output Frequency: | 50Hz ±1% |
| Output Rated Power: | 1500W |
| Output Surge Power: | 3000W |
| Wave Form: | Modified Sine Wave |
| Overvoltage | |
| A301-1K7-F3: | 15...16V |
| A302-1K7-F3: | 29...31V |
| Operating Temperature | |
| 100% Load: | 0...+30°C |
| 70% Load: | 0...+40°C |
| Weight: | 5500g |
|
|
| Part Nr. | UE | IE | UBA | UBL | h |
| [V] | [A] | [V] | [V] | [%] | |
| A301-1K7-F3 | 10...15 | 170 | 10±0,5 | 9,5±0,5 | 82 |
| A302-1K7-F3 | 21...30 | 85 | 21±0,8 | 20±0,8, | 85 |
| UE = Input Voltage Range, IA = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency | |||||
