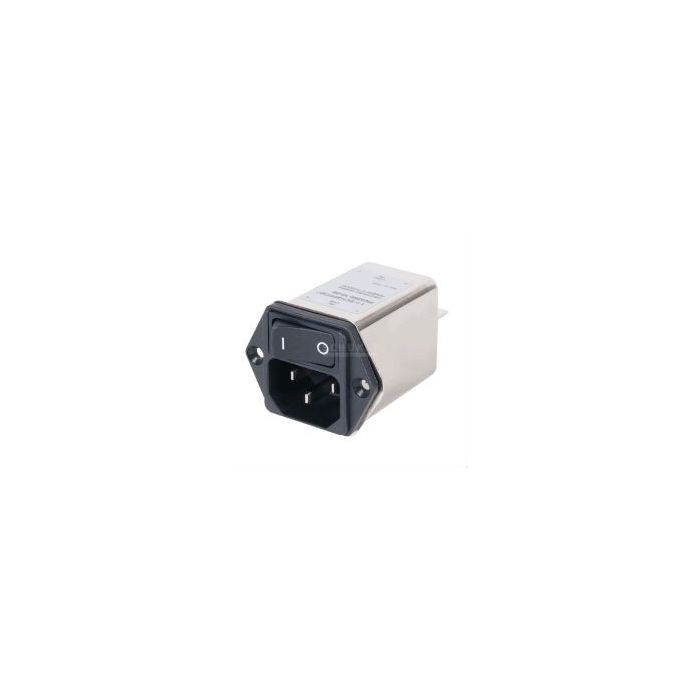

NETFILTER RFI IEC 2A 230V SCHAKELAAR FASTON 6,3MM
€ 24,95
€ 20,62
Artikelnummer
FN9264-2F
- ArtikelnummerFN9264-2F
- MerkSCHAFFNER
- Aantal 5+ € 22,45 € 18,55
Features
| • Filter built in a metal housing with integrated power line connector and 2-pole, non-illuminated line switch • faston plug terminal 6,3x0,8mm |
 |
| Technische Daten |
|
|
| Continuous Operating Voltage, Max.: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Neutral: | 0,76kV AC |
| Temperature Range: | -25...+85°C |
| Protection Class Front Side: | IP40 |
| Rocker Switch | |
| Ratings: | 10 (4A), 250V AC |
| Inrush Current: | 100A |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [µA] | |
| FN9264-1F | 1 | 5,15 | 0,1 | 2,2 | 0,00 |
| FN9264-2F | 2 | 52,7 | 0,1 | 2,2 | 0,00 |
| FN9264-4F | 4 | 1 | 0,1 | 2,2 | 0,00 |
| FN9264-6F | 6 | 0,3 | 0,1 | 2,2 | 0,00 |
| FN9264-10F | 10 | 0,21 | 0,1 | 2,2 | 0,00 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V, 50Hz | |||||
|
|||||
| Approvals |
