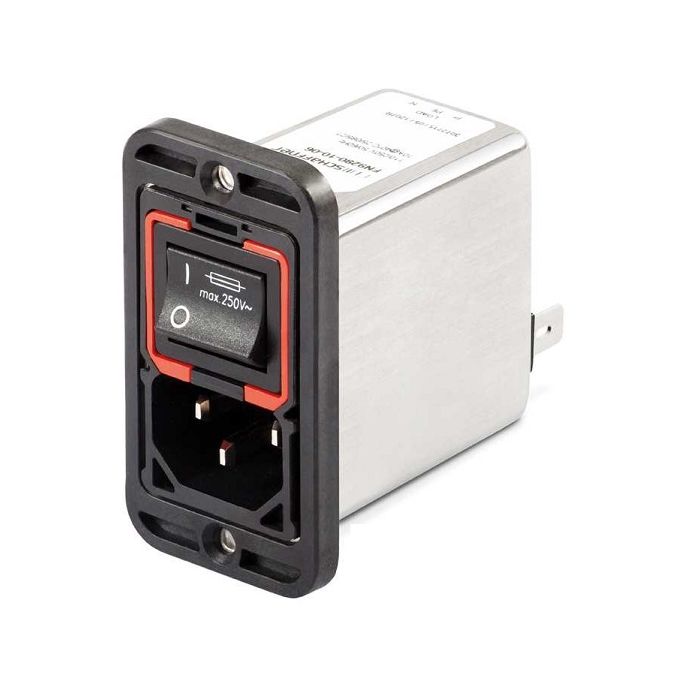

NETFILTER RFI IEC 2A 230V SCHAKELAAR EN ZEKERING FASTON 6.3MM
€ 42,50
€ 35,12
Artikelnummer
FN9280-2F
- ArtikelnummerFN9280-2F
- MerkSCHAFFNER
- Aantal 5+ € 38,24 € 31,60
Features
| • Filter built in a metal housing with integrated power line connector, fuse holder and 2-pole, non-illuminated line switch • Fuse holder for two fuses 5x20mm • Screw mounting from front or rear side |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Neutral: | 0,76kV AC |
| Temperature Range: | -25...+85°C |
| Protection Class Front Side: | IP40 |
| Rocker Switch: | |
| Ratings: | 10 (4)A/250V AC |
| Inrush Current: | 82A |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [mA] | |
| FN9280-2-06 | 2 | 4,4 | 220 | 2,2 | 0,31 |
| FN9280-10-06 | 10 | 0,32 | 220 | 2,2 | 0,31 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Approvals |
    14 |
