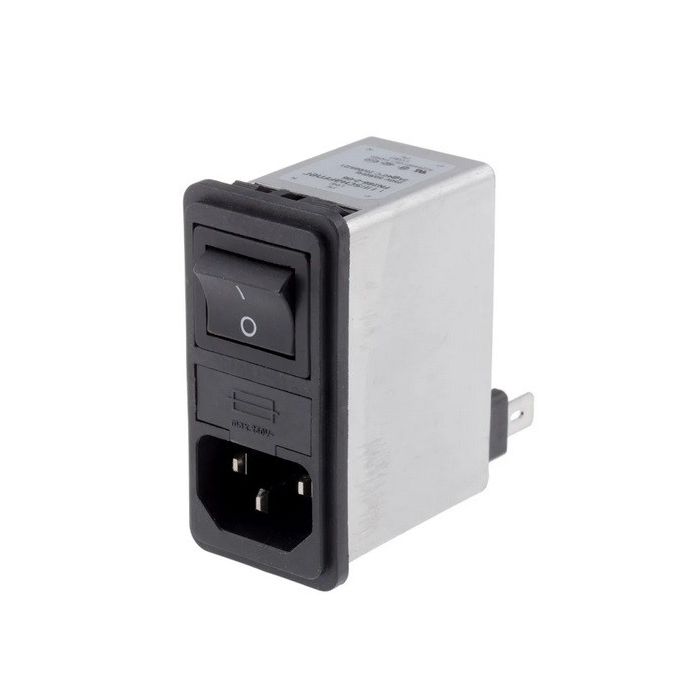

NETFILTER RFI IEC 10A 230V SCHAKELAAR EN ZEKERING FASTON 6.3MM SNAPIN MONTAGE
€ 39,95
€ 33,02
Artikelnummer
FN286-10F
- ArtikelnummerFN286-10F
- MerkSCHAFFNER
- Aantal 5+ € 35,95 € 29,71
Features
| • Filter built in a metal housing with integrated power line connector, fuse holder and 2-pole, non-illuminated line switch • Fuse holder for two fuses 5x20mm • For PCB mounting and faston plug terminal 6,3x0,8mm added • FN282_, FN284_: Screw mounting from front or rear side • FN286_: Snap-in mounting |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Line: | 0,76kV AC |
| Temperature Range: | -25...+85°C |
| Protection Class Front Side: | IP40 |
| Ratings Rocker Switch: | 10 (4)A/250V AC |
| Inrush Current: | 82A |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [µA] | |
| FN282-2F | 2 | 2 | 220 | 2,2 | 373 |
| FN282-4F | 4 | 1 | 220 | 2,2 | 373 |
| FN282-6F | 6 | 0,45 | 220 | 2,2 | 373 |
| FN282-10F | 10 | 0,34 | 220 | 2,2 | 373 |
| FN284-1F | 1 | 7,5 | 220 | 2,2 | 373 |
| FN284-2F | 2 | 2 | 220 | 2,2 | 373 |
| FN284-4F | 4 | 1 | 220 | 2,2 | 373 |
| FN284-6F | 6 | 0,45 | 220 | 2,2 | 373 |
| FN284-10F | 10 | 0,34 | 220 | 2,2 | 373 |
| FN286-1F | 1 | 7,5 | 220 | 2,2 | 373 |
| FN286-2F | 2 | 2 | 220 | 2,2 | 373 |
| FN286-4F | 4 | 1 | 220 | 2,2 | 373 |
| FN286-6F | 6 | 0,45 | 220 | 2,2 | 373 |
| FN286-10F | 10 | 0,34 | 220 | 2,2 | 373 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Approvals |
