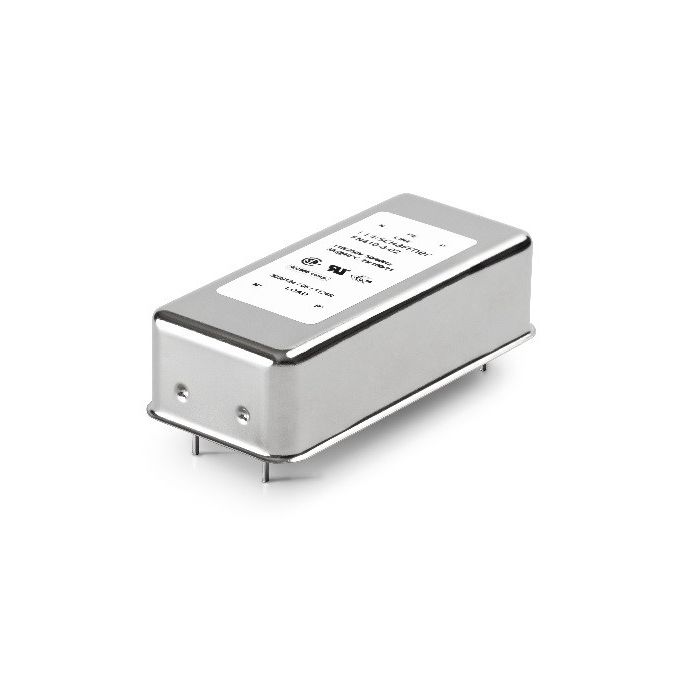

NETFILTER RFI 6A 230V 2 TRAPS PRINT
€ 39,95
€ 33,02
Artikelnummer
FN410-6
- ArtikelnummerFN410-6
- MerkSCHAFFNER
- Aantal 5+ € 35,95 € 29,71
Features
| • Single phase PCB-mounting filters, two-stage |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Line: | 760V AC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L1/L2 | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [mA] | |
| FN410-0.5 | 0,5 | 24/24 | 33 | 2,2 | 373 |
| FN410-1 | 1 | 10/10 | 33 | 2,2 | 373 |
| FN410-3 | 3 | 2/2 | 33 | 2,2 | 373 |
| FN410-6 | 6 | 0,8/0,8 | 33 | 2,2 | 373 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Approvals |
