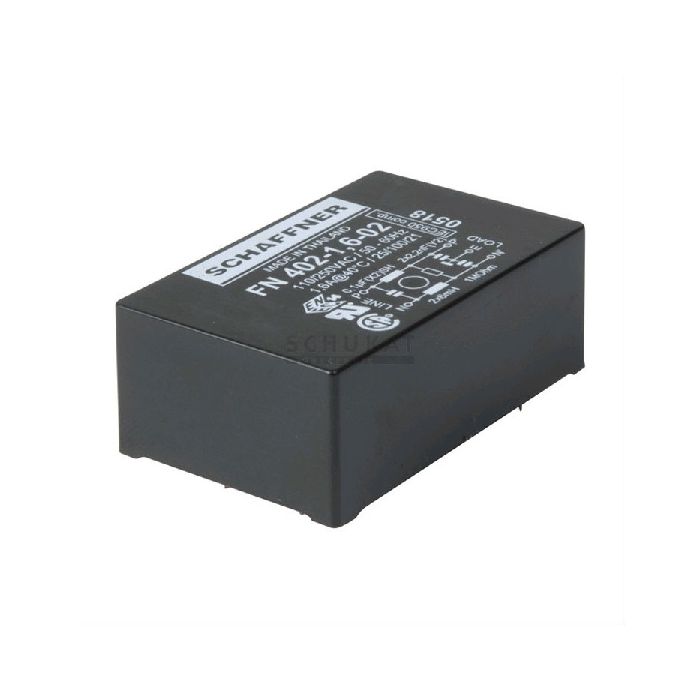

NETFILTER RFI 4A 230V PRINT
€ 13,75
€ 11,36
Artikelnummer
FN402-4
- ArtikelnummerFN402-4
- MerkSCHAFFNER
- Aantal 5+ € 12,37 € 10,22
| Features |
| • Single phase PCB-mounting filters • Low profile |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Neutral: | 0,76kV AC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [µA] | |
| FN402-0,5 | 0,5 | 40 | 100 | 2,2 | 373 |
| FN402-1 | 1 | 10 | 100 | 2,2 | 373 |
| FN402-1,6 | 1,6 | 6 | 100 | 2,2 | 373 |
| FN402-2,5 | 2,5 | 2 | 100 | 2,2 | 373 |
| FN402-4 | 4 | 1 | 100 | 2,2 | 373 |
| FN402-6,5 | 6,5 | 1 | 100 | 2,2 | 373 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Approvals |
