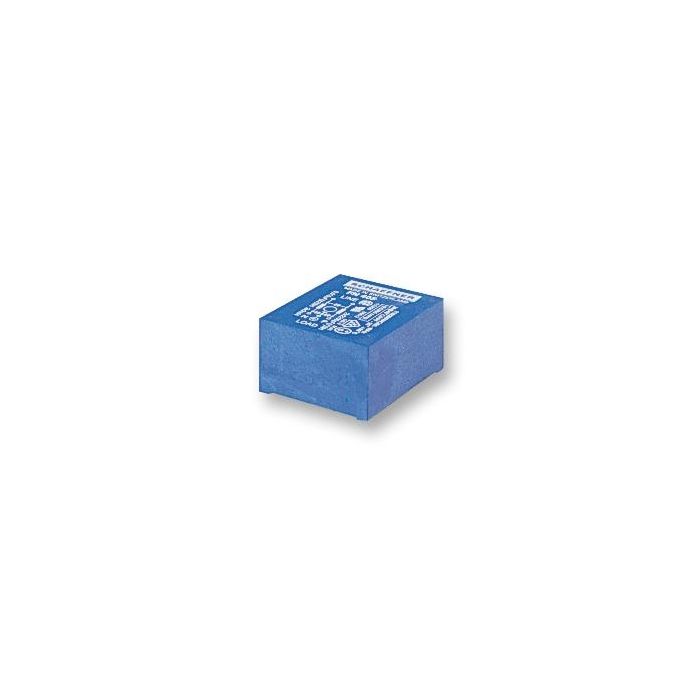

NETFILTER RFI 1A 230V PRINT
€ 14,96
€ 12,36
Artikelnummer
FN405-1
- ArtikelnummerFN405-1
- MerkSCHAFFNER
- Aantal 5+ € 13,46 € 11,12
Features
| • Single phase PCB-mounting filters • Low profile |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Line: | 760V AC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [µA] | |
| FN405-0,5 | 0,5 | 24 | 15 | 2,2 | 373 |
| FN405-1 | 1 | 10 | 15 | 2,2 | 373 |
| FN405-3 | 3 | 2 | 15 | 2,2 | 373 |
| FN405-6 | 6 | 0,8 | 15 | 2,2 | 373 |
| FN405-10 | 10 | 0,5 | 15 | 2,2 | 373 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Labelling |
   14 |
