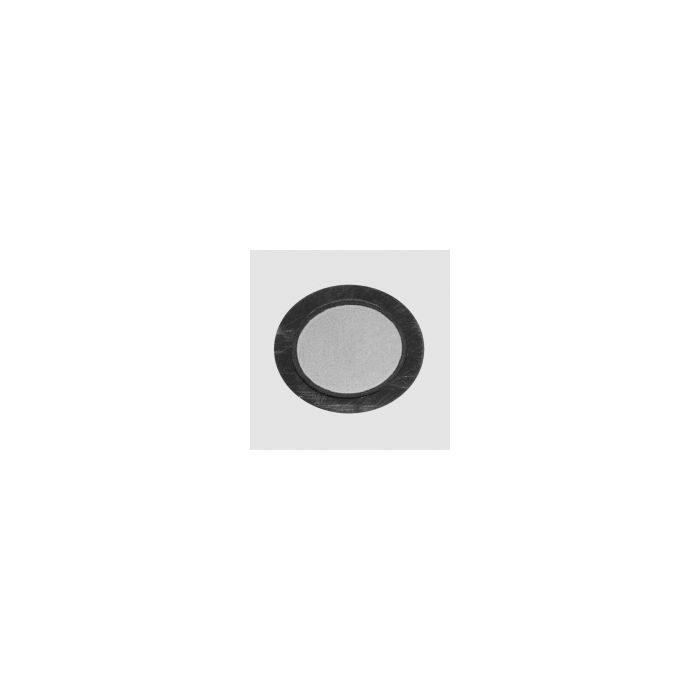

PIEZO ELEMENT 30VAC/350E/6.5KHZ/12000PF 20MM
€ 0,85
€ 0,70
Artikelnummer
MZ20650BD
- ArtikelnummerMZ20650BD
- MerkHITPOINT
- Aantal 10+ € 0,76 € 0,63
Technical Specifications
Max. Operating Voltage: 30Vpp
Oscillation Frequency (KHz): 6.5 ± 0.5
Resonant Impedance(Ù) Max.: 350
Capacitance (pF) ± 30%: 12000
Dimensions (mm):
D: 20.00mm
d: 14.80mm
T: 0.40mm
t: 0.20mm
Base Material: Brase
Max. Operating Voltage: 30Vpp
Oscillation Frequency (KHz): 6.5 ± 0.5
Resonant Impedance(Ù) Max.: 350
Capacitance (pF) ± 30%: 12000
Dimensions (mm):
D: 20.00mm
d: 14.80mm
T: 0.40mm
t: 0.20mm
Base Material: Brase
