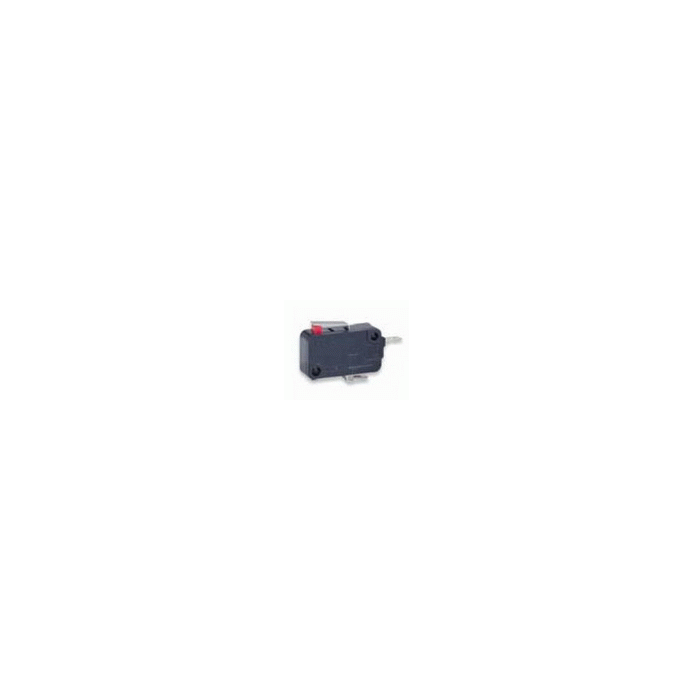

MICROSWITCH 1XOM 16A/250VAC FASTON 4,8MM KORTE HENDEL

Features
• Various actuators
• Long operating life due high precision mechanism design
• 4,8mm flat cable plug
• 16A current

Electrical Specifications
Switching Capacity: 16A, 250V AC/0,6A, 125V DC
Contact Resistance, Max.: 50mW
Isolation Resistance (500V DC), Min.: 100MW
Dielectric Strength, Min.: 1000V AC

Technical Specifications
Operating Temperature: -25...+80°C
Operating Force, Max.: 3,92N
Operating Life
mechanical: 50x106 Switches
electrical: 10x104 Switches
Air Humidity: 85% RH
Vibration Test (10...55Hz): 1,5mm Amplitude
