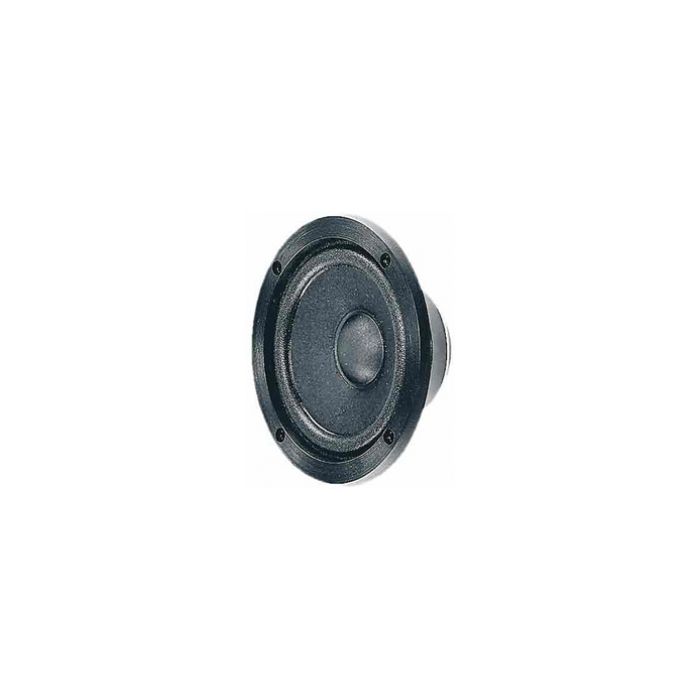

SPEAKER MID 8 OHM 80/100W 400-13000HZ 89DB 136MM

Nominal power handling with high pass 80 Watt (12 dB/Okt.; 800 Hz)
Peak power handling with high pass 100 Watt (12 dB/Okt.; 800 Hz)
Nominal impedance 8 Ohm
Frequency response 400 - 13000 Hz (-8 dB)
Mean sound pressure (nominal) 89 dB (1 W/1 m)
Resonance frequency 500 Hz
Magnetic induction 0,9 Tesla
Magnetic flux 260 µ Weber
Voice coil diameter 2,5 cm
Cutout diameter 11 cm
Net weight 0,55 kg
D.C. resistance Rdc 6,8 Ohm
Mechanical Q factor Qms 8,67
Electrical Q factor Qes 5,85
Total Q factor Qts 3,49
Equivalent volume Vas 0,14 l
Effective piston area Sd 70 cm2
Dynamically moved mass mmd 5 g
Force factor Bxl 4,3 T · m
Inductance of the voice coil 0,42 mH
