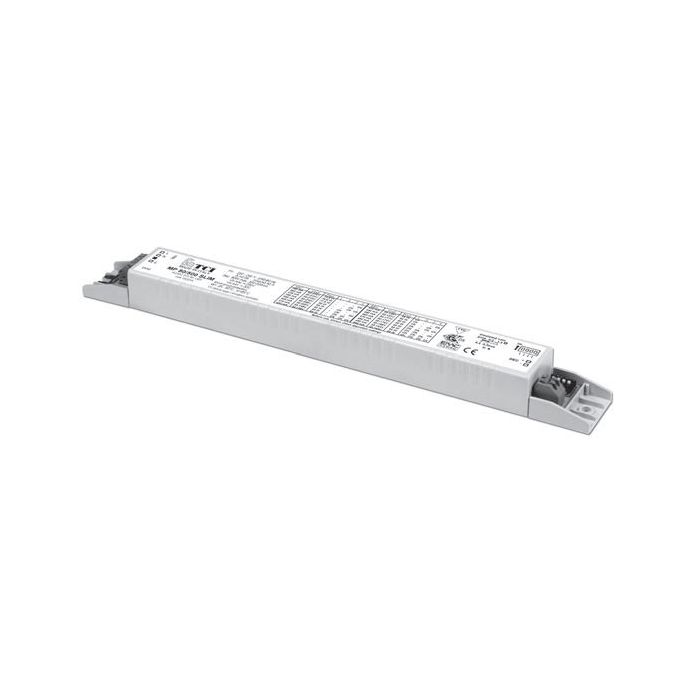

MP 80/500 SLIM LED DRIVER 30-210VDC 350-500MA 80W 280X30X21MM

Features
• Driver for built-in use.
• Multipower driver supplied with dip-switch for the selection of
the output current.
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Output is not isolated from the input.
• It can be used for lighting equipment in protection class I and II.
• Input and output terminal blocks on the opposite sides (wire
cross-section up to 1,5 mm2 / AWG15).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.e.
