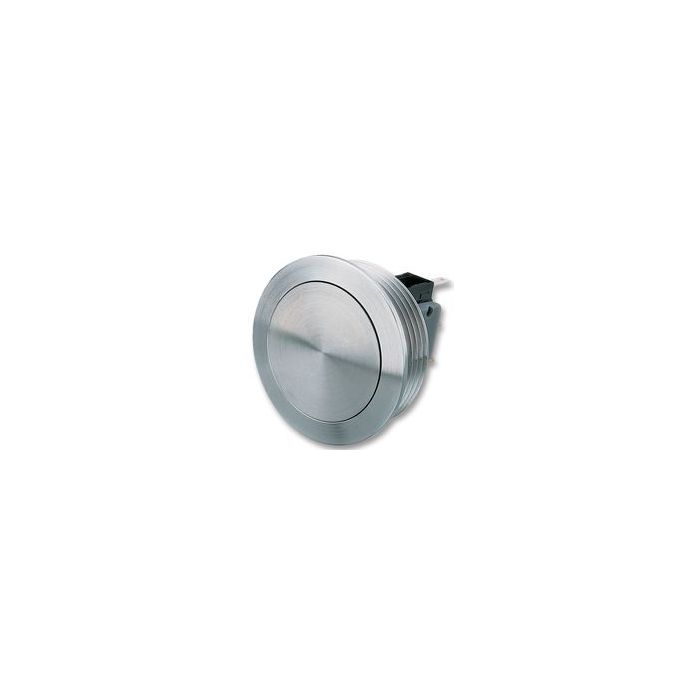

MOMENT 1XOM 230VAC/3A IP67 M30
€ 19,51
€ 16,12
Artikelnummer
MSM30S-UB
- ArtikelnummerMSM30S-UB
- MerkSCHURTER
- Aantal 5+ € 17,55 € 14,50
Features
| • Protection against vandalism • For use in harsh environments • High quality design • Reliable tactile feedback of input • Point illuminated, ring illuminated or unilluminated |
 |
| Technical Specifications |
|
|
| Shell Material: | Stainless Steel |
| Operating Material: | Stainless Steel |
| Material Contacts: | Silver-plated |
| Switching Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 3A |
| Switching Capacity, Max.: | 1250W |
| Contact Resistance: | <30 mOhm |
| Bounce Time, Typ.: | <5ms |
| Operating Force: | 3,7N |
| Operating Path: | 0,8mm |
| Operating Life/Cycles | 200x103 |
| Forward Voltage | |
| Point Illumination Red, Green: | 2V DC |
| Point Illumination Blue: | 3,2V DC |
| Ring Illumination: | 24V DC |
| Temperature Range: | -25...+85°C |
| Protection Against Mechanical Strain | |
| DIN EN 50102, MSM16: | IK06 |
| DIN EN 50102, MSM19, 22, 30: | IK07 |
| Protection Class: | IP67 |
