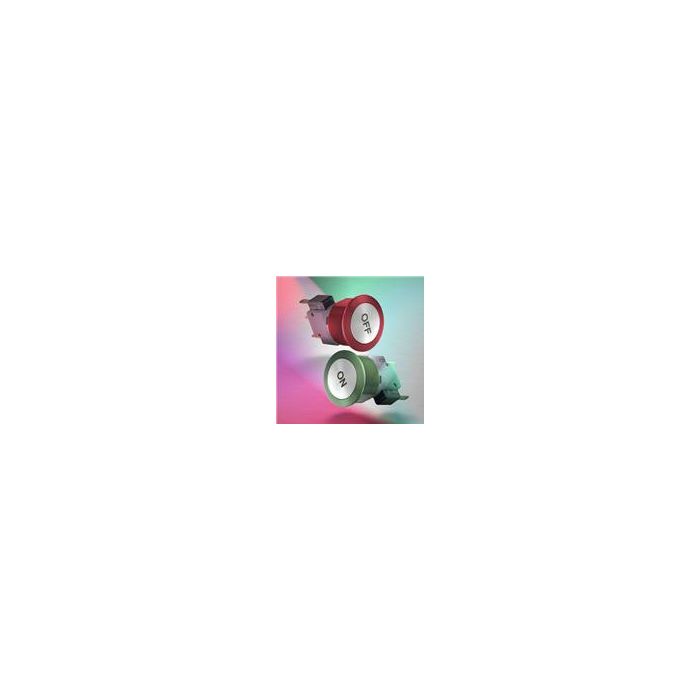

MOMENT 1XOM 230VAC/3A IP67 M22 VERLICHTING KNOP OFF ROOD
€ 23,50
€ 19,42
Artikelnummer
MSM22EL-RF
- ArtikelnummerMSM22EL-RF
- MerkSCHURTER
- Aantal 5+ € 21,14 € 17,47
Features
| • Housing material: red or green aluminium, anodized • Actuator: stainless steel, unlabeled or with imprint ON, OFF in English or with imprint EIN, AUS in German • Vandal-proof • For use in harsh environment • High quality design • Reliable tactile feedback of input |
 |
| Technical Specifications |
|
|
| Material | |
| Housing: | Aluminium, Anodized |
| Actuator: | Stainless Steel |
| Contacts: | Silver-plated |
| Switching Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 3A |
| Switching Capacity, Max.: | 1250W |
| Contact Resistance: | <30mOhm |
| NO Pulse Time: | <5ms |
| Operating Force: | 3,7N |
| Operating Path: | 0,8mm |
| Operating Life/Cycles: | 200x103 |
| Temperature Range: | -25...+85°C |
| Protection Class: | IP67 |
