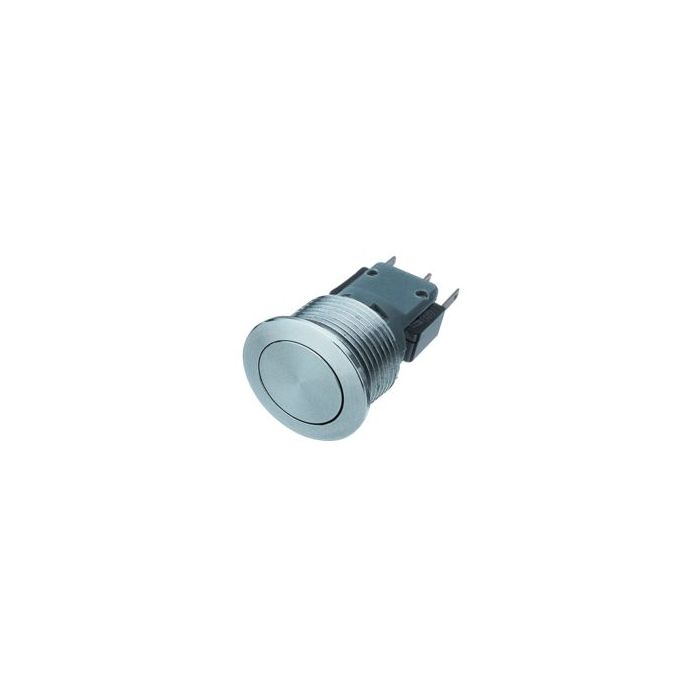

MOMENT 1XOM 230VAC/3A IP67 M22
€ 12,95
€ 10,70
Artikelnummer
MSM22SM-UB
- ArtikelnummerMSM22SM-UB
- MerkSCHURTER
- Aantal 5+ € 11,65 € 9,63
Features
| • High impact resistance IK 07, vandal-proof • For switching voltage up to 250VAC • Very high reability • Sealed microswitch for use in harsh environment • Unilluminated |
 |
| Technical Specifications |
|
|
| Shell Material: | Stainless Steel |
| Operating Material: | Stainless Steel |
| Material Contacts: | Silver-plated |
| Switching Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 3A, 250V AC/5A, 125V AC |
| Switching Capacity, Max.: | 1250W |
| Contact Resistance: | <30mOhm |
| Bounce Time, Typ.: | <5ms |
| Operating Force: | 3,7N |
| Operating Path: | 0,8mm |
| Operating Life/Cycles: | 200x103 |
| Temperature Range: | -25...+85°C |
| Protection Against Mechanical Strain | |
| DIN EN 50102: | IK07 |
| Protection Class: | IP67 |
