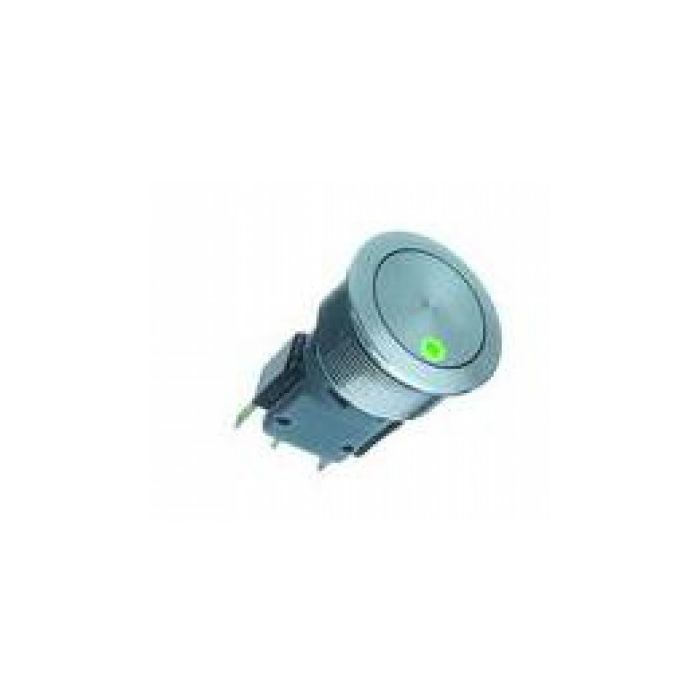

MOMENT 1XOM 230VAC/3A IP67 M19 VERLICHTING KNOP GROEN
€ 24,50
€ 20,25
Artikelnummer
MSM19SP-GN
- ArtikelnummerMSM19SP-GN
- MerkSCHURTER
- Aantal 5+ € 22,05 € 18,22
Features
• Protection against vandalism • For use in harsh environments • High quality design • Reliable tactile feedback of input • Point illuminated, ring illuminated or unilluminated |
Technical Specifications |
Shell Material: | Stainless Steel |
Operating Material: | Stainless Steel |
Material Contacts: | Silver-plated |
Switching Voltage, Max.: | 250V AC |
Switching Current, Max.: | 3A |
Switching Capacity, Max.: | 1250W |
Contact Resistance: | <30 mOhm |
Bounce Time, Typ.: | <5ms |
Operating Force: | 3,7N |
Operating Path: | 0,8mm |
Operating Life/Cycles | 200x103 |
Forward Voltage | |
Point Illumination Red, Green: | 2V DC |
Point Illumination Blue: | 3,2V DC |
Ring Illumination: | 24V DC |
Temperature Range: | -25...+85°C |
Protection Against Mechanical Strain | |
DIN EN 50102, MSM16: | IK06 |
DIN EN 50102, MSM19, 22, 30: | IK07 |
Protection Class: | IP67 |
