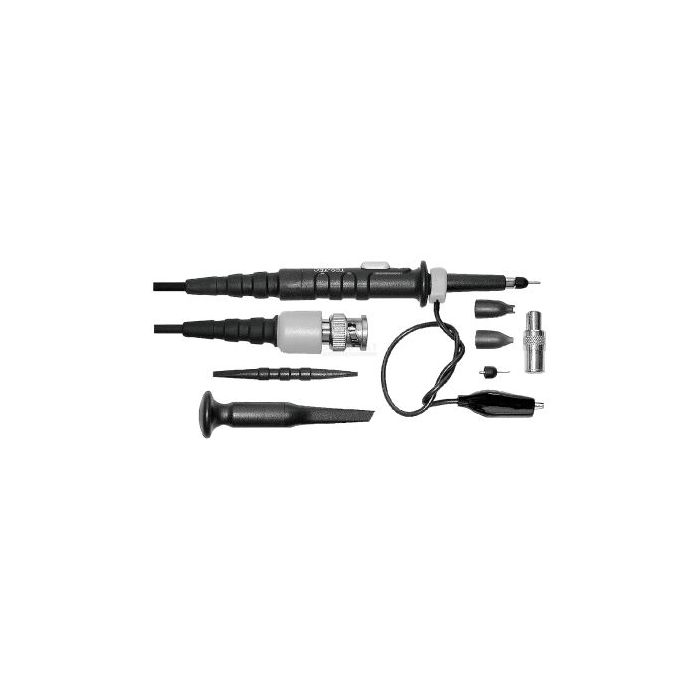

MODULAR PROBE 1:1/10:1 20/250MHZ 1,2M KABEL
€ 42,96
€ 35,50
Artikelnummer
TTMF312
- ArtikelnummerTTMF312
- MerkTESTEC
- Aantal 5+ € 38,66 € 31,95
Features
| • Modular probes for all common oscilloscopes • Ergonomic design • Excellent manufacturing quality • Large selection of accessories included |
 |
| TTMF312 |
| Probe 1:10 and 10:1 |
|
| Technical Specifications |
|
|
| Attenuation: | 1x/10x |
| Input Impedance | |
| R, 1x/10x: | 11)/10MOhm |
| C, 1x/10x: | 47pF/15,0pF |
| Bandwidth, 1x/10x: | 20MHz/250MHz |
| Rise Time, 1x/10x: | 18ns/1,4ns |
| Input Voltage, Max.:2) | 600V |
| Compensation Range: | 10...60pF |
| Cable Length: | 1,2m |
| 1) 1MW Input Voltage of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency) | |
