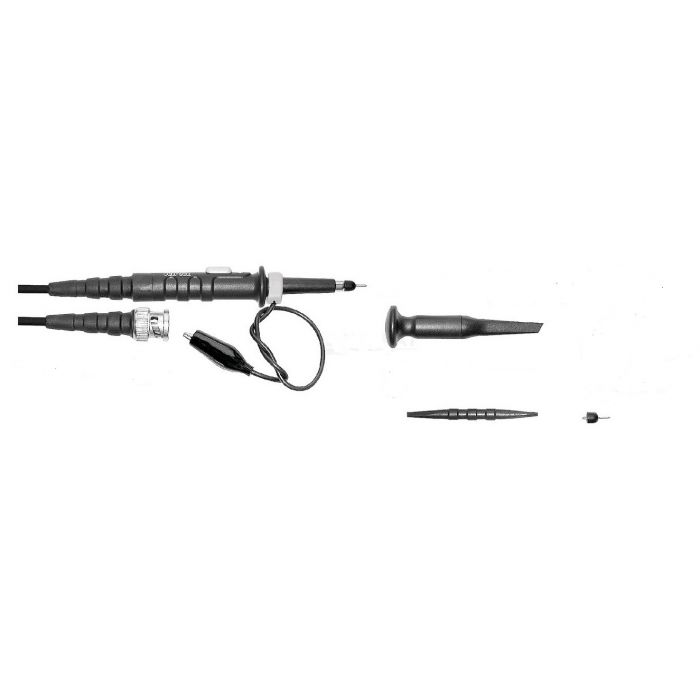

MODULAR PROBE 1:1/10:1 15/150MHZ 1,2M KABEL
€ 31,94
€ 26,40
Artikelnummer
TTLF312
- ArtikelnummerTTLF312
- MerkTESTEC
- Aantal 5+ € 28,75 € 23,76
Features
• Modular probes for all common oscilloscopes
• Ergonomic design
• Excellent manufacturing quality
• Large selection of accessories included
Technical Specifications
 |
|
| Attenuation: | 1x/10x |
| Input Impedance | |
| R, 1x/10x: | 11)/10MOhm |
| C, 1x/10x: | 47pF/15,5pF |
| Bandwidth, 1x/10x: | 15MHz/150MHz |
| Rise Time, 1x/10x: | 24ns/2,3ns |
| Input Voltage, Max.:2) | 600V |
| Compensation Range: | 10...30pF |
| Cable Length: | 1,2m |
| 1) 1MW Input Resistance of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency). Attenuation 1:1 Max. Input Voltage 400V, DC including AC Peak (Derate with Rising Frequency) | |
