MOBIELE CB ZENDER SET MET KABEL EN MAGNEETVOET ANTENNE

€ 109,95 € 90,87

Artikelnummer

ZX40/SP

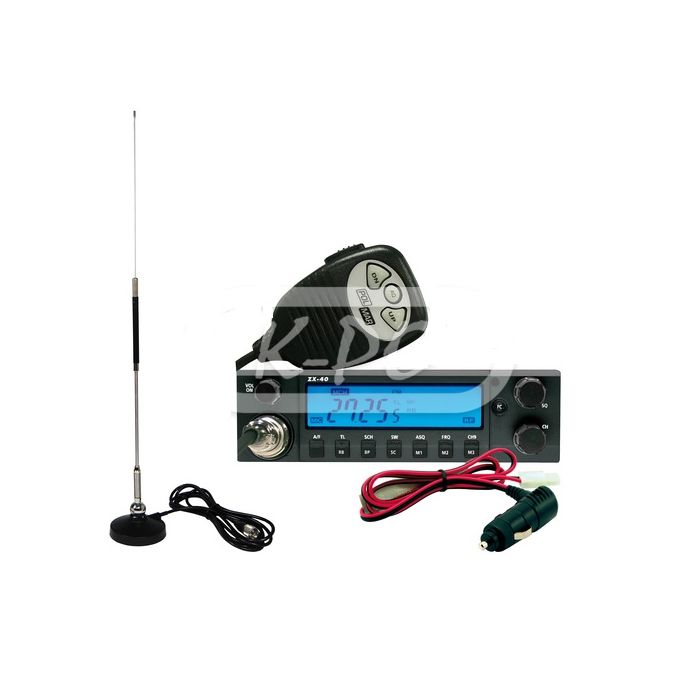

Polmar - ZX-40 starter pack

Toon meer Toon minder

ArtikelnummerZX40/SP
MerkPOLMAR

Aantal 3+ € 104,45 € 86,32

The Polmar ZX-40 starter pack is a more luxury plug and play CB set and easy to use. The Polmar ZX-40 radio comes with a cigarette lighter plug and in combination with the high-performance Sirio Mini Mag 27 magnet antenna makes this a perfect deal for starters and travellers.

Frequency range: 26.965 - 27.405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: Backlight
Display colors: Blue
Noise blanker: Yes
Squelch: Automatic squelch / Manual squelch /
Emergency channel: Yes
Scan function: Yes
Memory channels: Yes
External speaker socket: Yes
Car socket connector: Yes

Electrical data (radio)

Voltage: 13,8 Volt

Transmitter

Microphone sensitivity: 3.0 mV
Frequency allowance: ± 300 Hz
Modulation AM: 90%
Modulation FM: 2.0 kHz

Receiver

AM sensitivity: 0.5 µV for 10 dB
FM sensitivity: 0.3 µV for 12 dB
Maximum audio power: 4 Watt
Squelch sensitivity: 1.0 μV max

Mechanical data (radio)

Length: 140 mm
Height: 40 mm
Width: 145 mm
Weight: 900 gram
Antenna connector: UHF (PL)
Mike connector: 8 pin connector

Electrical data (antenna)

Electrical type: Central loaded
VSWR: ≤ 1.2
Bandwidth: 280 kHz ≤ 2.0
Power continues: 10 Watts (CW)
Power peak: 50 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 3 meter / RG 58

Mechanical data (antenna)

Materials: Copper, brass, stainless steel, fiberglass
Height: 630 mm
Weight: 575 gram
Mounting type: 90 mm magnet

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 12 Volt cigarette lighter plug
