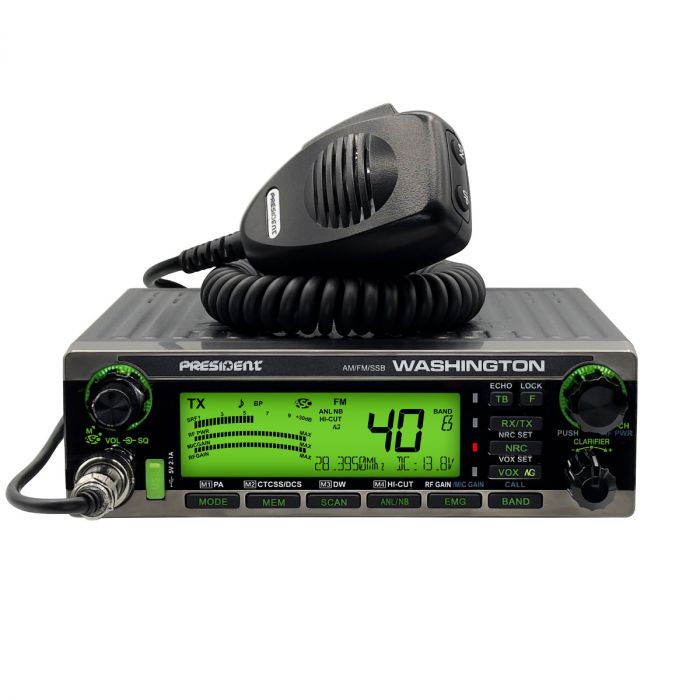

The new President Washington is your ultimate 40 channel AM/FM/USB/LSB transceiver. The radio has 80W PEP (AM/USB/LSB) and 50W (FM). The Washington comes with 38 CTCSS tones and 104 DCS codes, ensuring your conversations remain private and interference-free. Besides that there are many other interesting features which makes the Washington one of the most exciting CB radios available on the market.
Please note that the President Washington is a 10/12 meter band radio. Without modification it can't be used on the 11 meter band.
Features
- Modulation: AM / FM / LSB / USB
- Multi-bands: Yes
- Output power: 80 W PEP (AM/USB/LSB) / 50 W (FM)
- Channels: 40
- Display type: LCD display
- Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
- VOX Function: Yes
- USB: Yes
- Noise blanker: Yes
- Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
- Scan function: Yes
- Memory channels: Yes
- External speaker socket: Yes
- External PA socket: Yes
- S-meter: Yes
- MIC gain: Yes
- RF gain: Yes
- TOT (time out timer): Yes
- Dual watch: Yes
- CTCSS: Yes, 38 tones
- DCS: Yes, 104 codes
- External VOX socket: Yes
- Roger Beep: Yes
- Key Beep: Yes
- Clarifier: Yes
Electrical data
Transmitter
- Audio frequency response: 300 Hz - 3 kHz
- Microphone sensitivity: 3.0 mV
- Frequency allowance: ± 200 Hz
- Transmission interference: inferior to 4 nW (- 54 dBm)
- Emitted power in the adjacent channel: inferior a 20 μW
- Modulated signal distortion: 2.0 %
- Drain: 13.8 Volt: < 12 A max. with modulation
Receiver
- AM sensitivity: 0,5 µV - 113 dBm
- FM sensitivity: 0,5 µV - 113 dBm
- Maximum audio power: 3 Watts
- USB/LSB sensitivity: 0,28 µV - 118 dBm
- Frequency response: 300 Hz - 3 kHz
- Adjacent channel selectivity: 60 dB
- Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
- Frequency image rejection rate: 60 dB
- Intermediate image rejection rate: 70 dB
- Drain: min. 200 mA / max. 600 mA
Mechanical data
- Length: 185 mm
- Height: 56 mm
- Width: 172 mm
- Weight: 1190 gram
- Antenna connector: UHF (PL) female (SO-239)
- Mike connector: 6 pin connector
Inside the box
- Transceiver: 1 pcs
- Microphone: 1 pcs
- Fixing screws: 1 set
- Mounting bracket: 1 pcs
- Power lead: 1 pcs
- User Manual: English, Spanish, French, Polish
