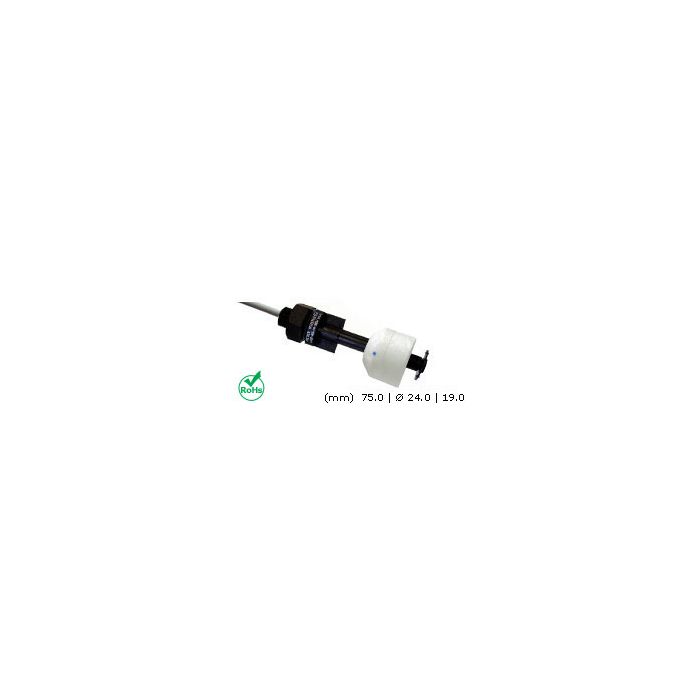

REED NIVEAU SENSOR 1XMAAK VERTIKAAL 0.5A 10W PP 5 STUK
€ 51,12
€ 42,25
Artikelnummer
MLS21APP
- ArtikelnummerMLS21APP
- MerkMEDER
- Aantal 3+ € 46,00 € 38,02
Features
To monitor point levels in containers for automotive applications, measuring and control and domestic applications
Suitable for use in plain or acidic water
Chimney, float and screw made from polypropylene (PP)
Sealed with nitril-rubber
Sealing material CY221
Leads pass through a 500mm long round cable, LIYY 2x0,14mm2
Cable end cut, 30mm stripped, core approx. 5mm stripped and tinned
Technical Specifications
Type of Contact: SPST
Switching Capacity, Max.: 10W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 0,5A
Current at Closed Contacts: 1,25A
Contact Resistance, Max.: 150mW
Breakdown Voltage, Min.: 225V DC
Operate Time incl. Bounce: 0,5ms
Release Time: 0,1ms
Temperature Range: -20...+90°C
To monitor point levels in containers for automotive applications, measuring and control and domestic applications
Suitable for use in plain or acidic water
Chimney, float and screw made from polypropylene (PP)
Sealed with nitril-rubber
Sealing material CY221
Leads pass through a 500mm long round cable, LIYY 2x0,14mm2
Cable end cut, 30mm stripped, core approx. 5mm stripped and tinned
Technical Specifications
Type of Contact: SPST
Switching Capacity, Max.: 10W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 0,5A
Current at Closed Contacts: 1,25A
Contact Resistance, Max.: 150mW
Breakdown Voltage, Min.: 225V DC
Operate Time incl. Bounce: 0,5ms
Release Time: 0,1ms
Temperature Range: -20...+90°C
