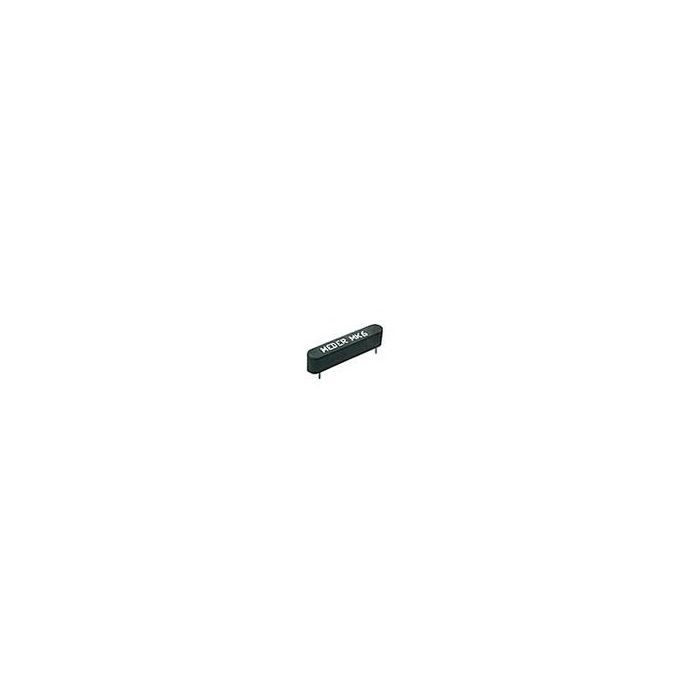

REED KONTAKT 1XMAAK PRINT 19,8X3,3X4,2MM 0,5A 10W
€ 1,95
€ 1,61
Artikelnummer
MK67B
- ArtikelnummerMK67B
- MerkMEDER
- Aantal 5+ € 1,74 € 1,44
Features
Sensors from the MK- series are magnetically operated reed proximity switches for direct PCB mounting. The sensor should be mounted onto a fixed surface with the actuating magnet on the moving surface.
The reed switch and permanent magnet must remain at a certain distance apart. Approximation resp. removal of the magnetic field determines the closing and opening of the Reed switch.
The magnetic operate sensitivities are divided into different AW classes.
The contact is made of ferromagnetic reeds which are melted within a gas-proof glass tube.
The parallel ends overlap each other to form a magnetic gap.
Due to a magnetic field the contact paddles take opposite polarity and close with sufficient strength.
Application
Keyboard applications
Lever hoists
MK06-5-C, MK67B and MK67C as well as:
Telecommunications
Door switches for domestic appliances
Limit switch for low-power signals
Position indicators in lifts/elevators
Structure
MK67_: Case switch for direct PCB mounting, P = 17,78mm, 1 contact
stripped and tinned
Specifications
Rated Power (W): 10
Switching Voltage (VDC): 200
Switching Current (A): 0,5
Carry Current (A): 1.25A
Breakdown Voltage (min. VDC): 225
Avail. Operate Range (AT): 10 to 15
