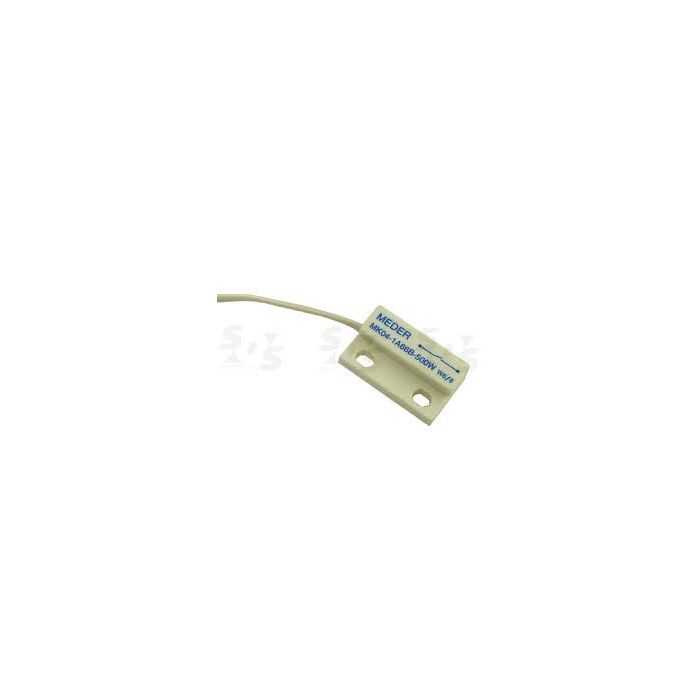

REED KONTAKT 1XMAAK OPBOUW MET KABEL 23X13,9X5,9MM 0.5A 10W
€ 5,75
€ 4,75
Artikelnummer
MK471B
- ArtikelnummerMK471B
- MerkMEDER
- Aantal 5+ € 5,17 € 4,27
Features
Sensors from the MK- series are magnetically operated reed proximity switches for direct PCB mounting. The sensor should be mounted onto a fixed surface with the actuating magnet on the moving surface.
The reed switch and permanent magnet must remain at a certain distance apart. Approximation resp. removal of the magnetic field determines the closing and opening of the Reed switch.
The magnetic operate sensitivities are divided into different AW classes.
The contact is made of ferromagnetic reeds which are melted within a gas-proof glass tube.
The parallel ends overlap each other to form a magnetic gap.
Due to a magnetic field the contact paddles take opposite polarity and close with sufficient strength.
Application
Keyboard applications
Lever hoists
Switching Capacity: 10W
Switching Voltage: 200Vdc
Switching Current: 0,5A
Carry Current: 1,25A
Contact Resistance: 150mW
Breakdown Voltage: 225Vdc
Initial Excitation: 10...19AW
Sensors from the MK- series are magnetically operated reed proximity switches for direct PCB mounting. The sensor should be mounted onto a fixed surface with the actuating magnet on the moving surface.
The reed switch and permanent magnet must remain at a certain distance apart. Approximation resp. removal of the magnetic field determines the closing and opening of the Reed switch.
The magnetic operate sensitivities are divided into different AW classes.
The contact is made of ferromagnetic reeds which are melted within a gas-proof glass tube.
The parallel ends overlap each other to form a magnetic gap.
Due to a magnetic field the contact paddles take opposite polarity and close with sufficient strength.
Application
Keyboard applications
Lever hoists
Switching Capacity: 10W
Switching Voltage: 200Vdc
Switching Current: 0,5A
Carry Current: 1,25A
Contact Resistance: 150mW
Breakdown Voltage: 225Vdc
Initial Excitation: 10...19AW
