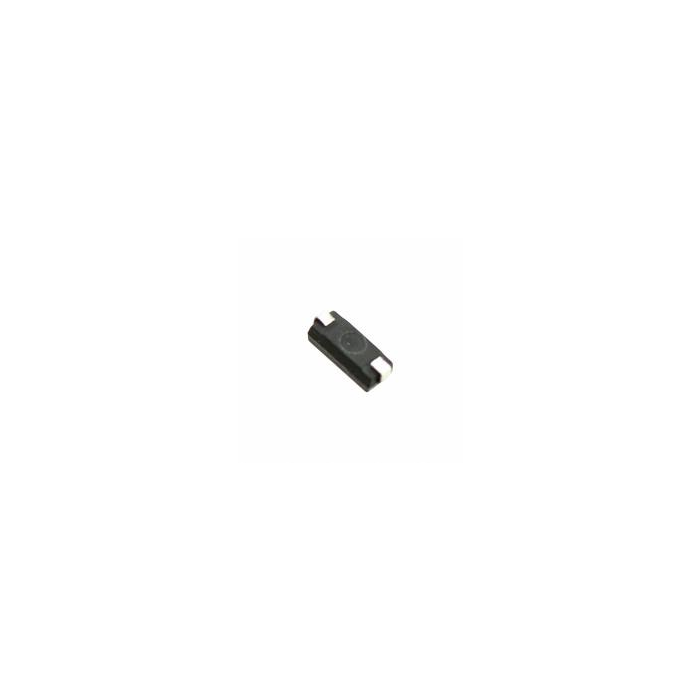

REED SENSOR SMD 1XMAAK 5X2,2X1,8MM 5-10AT 0.1A 1W 10 STUKS
€ 32,95
€ 27,23
Artikelnummer
MK24A3
- ArtikelnummerMK24A3
- MerkMEDER
- Aantal 5+ € 29,65 € 24,50
Featutes
Smallest, magnetically operated reed proximity switches for SMD mounting
No power-required sensor for low power applications
No external power required for sensor operation
For example: rotary encoder, automotive and telecommunication applications and medical technologies
Switching Capacity, Max. W: 1
Switching Voltage, Max. Vdc: 30
Switching Current, Max. A: 0,1
Carry Current, Max. A: 0,3
Contact Resistance, Max. mW: 250
Breakdown Voltage, Min. Vdc: 60
Initial Excitation AW: 5..10
Smallest, magnetically operated reed proximity switches for SMD mounting
No power-required sensor for low power applications
No external power required for sensor operation
For example: rotary encoder, automotive and telecommunication applications and medical technologies
Switching Capacity, Max. W: 1
Switching Voltage, Max. Vdc: 30
Switching Current, Max. A: 0,1
Carry Current, Max. A: 0,3
Contact Resistance, Max. mW: 250
Breakdown Voltage, Min. Vdc: 60
Initial Excitation AW: 5..10
