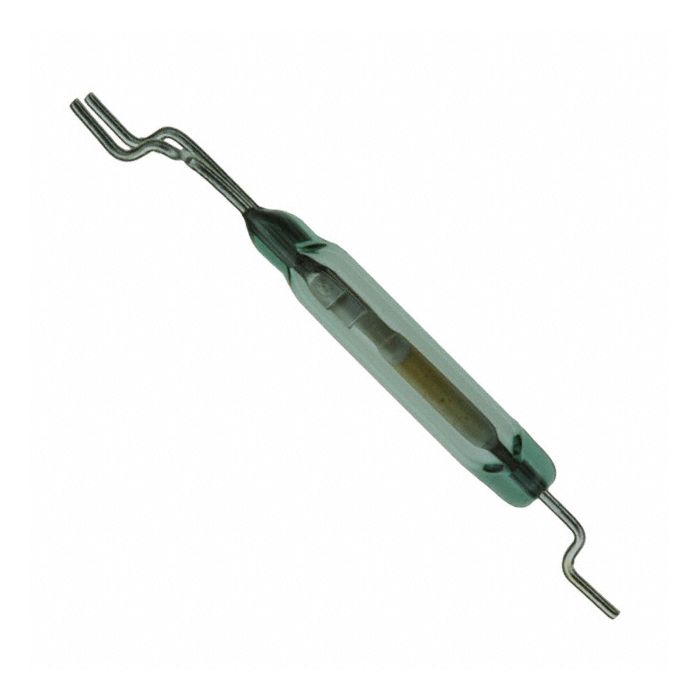

REED SENSOR SMD 1XWISSEL 14X2,8MM 15-20AT 0.5A 10W 10 STUKS
€ 32,95
€ 27,23
Artikelnummer
MK2390C2
- ArtikelnummerMK2390C2
- MerkMEDER
- Aantal 5+ € 29,65 € 24,50
Features
Reed switches without moulding case
No power-required sensor for low power applications
No external power required for sensor operation
For example: automotive und telecommunication applications
Switching Capacity, Max. W: 10
Switching Voltage, Max. Vdc: 175
Switching Current, Max. A: 0,5
Carry Current, Max. A: 1,0
Contact Resistance, Max. mW: 150
Breakdown Voltage, Min. Vdc: 230
Initial Excitation AW: 15..20
Reed switches without moulding case
No power-required sensor for low power applications
No external power required for sensor operation
For example: automotive und telecommunication applications
Switching Capacity, Max. W: 10
Switching Voltage, Max. Vdc: 175
Switching Current, Max. A: 0,5
Carry Current, Max. A: 1,0
Contact Resistance, Max. mW: 150
Breakdown Voltage, Min. Vdc: 230
Initial Excitation AW: 15..20
