REED SENSOR SMD 1XMAAK 11,6X2,3X2,3MM 0.5A 10W 10 STUKS

Description

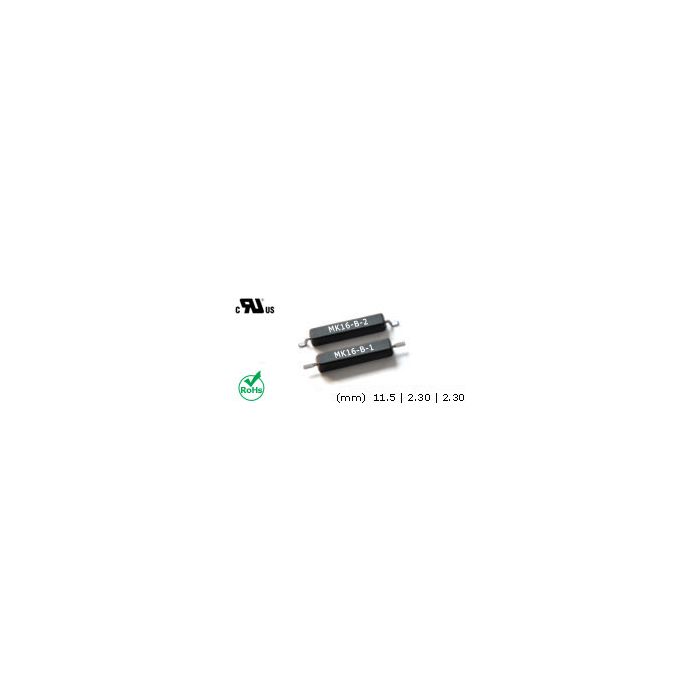

MK16 are magnetically operated Reed proximity switches for SMD mounting.
Lead design 1: Flat, straight leads for PCB slot mounting.
Lead design 2: Flat, bent SMD leads.

The sensors are supplied taped & reeled according to IEC 286/part 3 suitable for auto-placement. The special features of this series are the small dimensions of only 15.6 x 2.3 x 2.3 mm and the simple internal structure (low-cost version).



Features
Four operate sensitivities available
Tape and Reel available
Excellent for low power operations
No external power required for sensor operation


Applications
Electronic PCB's where all components are surface mounted
Telecommunication applications
Hook switch in mobile and hard-wired phones
Switching element in microphones

Specifications
Contact Form: 1A
Rated Power (W): 0 to 25
Switching Voltage (VDC): 0 to 400
Switching Current (A): 0 to 1.5
Carry Current (A): 0 to 2.0
Breakdown Voltage (Minimum VDC): 100 to 600
Avail. Operate Range (AT): 10 to 60
