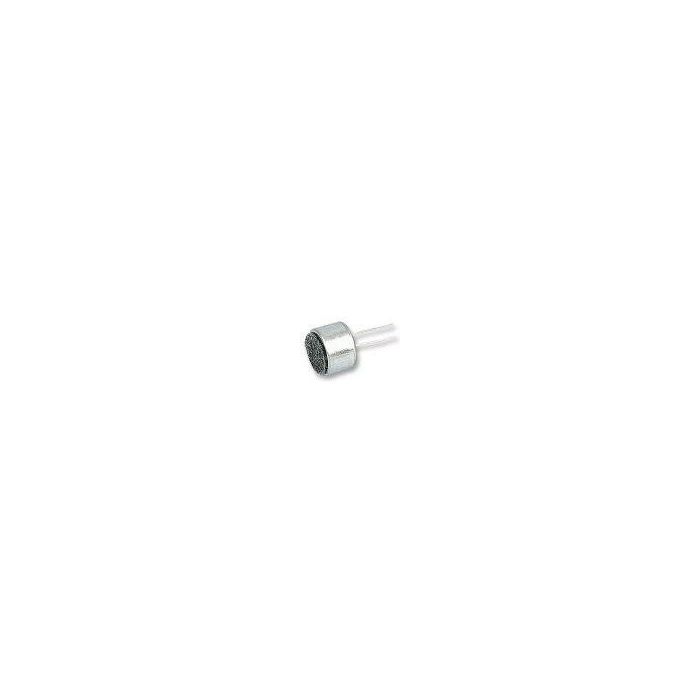

MICROFOON ELEMENT ELECTRET 9,7X4,5MM -62DB PC 25 STUKS
€ 7,95
€ 6,57
Artikelnummer
ECM9745P
- ArtikelnummerECM9745P
- MerkHITPOINT
- Aantal 4+ € 7,55 € 6,24
Technical Specifications
 |
|
| Directivity: | Omnidirectional |
| Impedance, Max.: | 2,2kOhm |
| Current Consumption, Max.: | 0,5mA |
| Operating Voltage: | 1,0...10V |
| Operating Temperature: | -10...+45°C |
| Storage Temperature: | -20...+60°C |
| PMOF-9767NS-38DQ | |
| Operating Temperature: | -20...+70°C |
| Storage Temperature: | -30...+70°C |
| PMOF9767NP-42DQ, _NW-46DQ | |
| Operating Temperature: | -20...+60°C |
| Storage Temperature: | -30...+70°C |
|
|
| Part Nr. | Sensitivity1) | Sensitivity2) | Frequency |
| Range | |||
| [dB] | [dB] | [Hz] | |
| PMOF97_-42U | -62 | -42 | 20...16000 |
| 1) 0dB = 1V/µBar, 1kHz, 2) 0dB = 1V/Pa, 1kHz | |||
