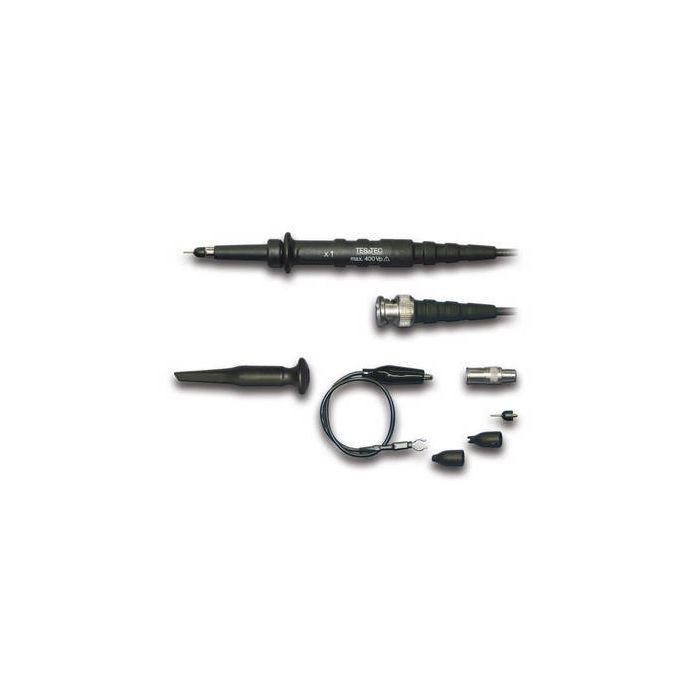

MODULAR PROBE 1:1 25MHZ 1,2M CABLE
Extra informatie
print
Technical Specifications
Attenuation: 1x
Input Impedance R:1) 1MW C: 45pF
Bandwidth: 25MHz
Rise Time: 14ns
Input Voltage, Max.:2) 600V
Cable Length: 1,2m
1) 1MW Input Resistance of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency). Attenuation 1:1 Max. Input Voltage 400V, DC including AC Peak (Derate with Rising Frequency)
