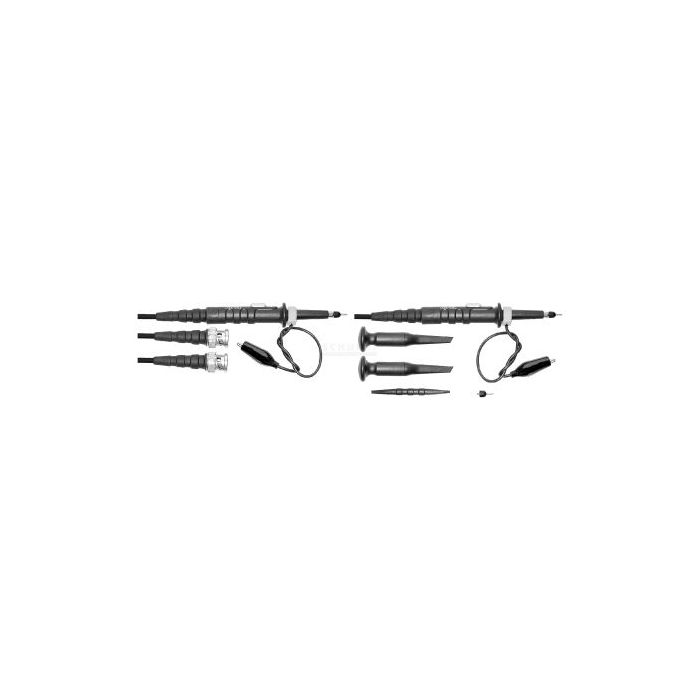

MODULAR PROBE 1:1/10:1 15/150MHZ 1,2M CABLE 2 PACK

TESTEC
Artikelnummer: TTLF312-2
Uw prijs:
€ 48,72 Excl. BTW:
€ 58,95 Incl. BTW:
- +

Extra informatie

print

Features
• Modular probes for all common oscilloscopes
• Ergonomic design
• Excellent manufacturing quality
• Large selection of accessories included

Technical Specifications


Attenuation: 1x/10x
Input Impedance
R, 1x/10x: 11)/10MOhm
C, 1x/10x: 47pF/15,5pF
Bandwidth, 1x/10x: 15MHz/150MHz
Rise Time, 1x/10x: 24ns/2,3ns
Input Voltage, Max.:2) 600V
Compensation Range: 10...30pF
Cable Length: 1,2m
1) 1MW Input Resistance of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency). Attenuation 1:1 Max. Input Voltage 400V, DC including AC Peak (Derate with Rising Frequency)
