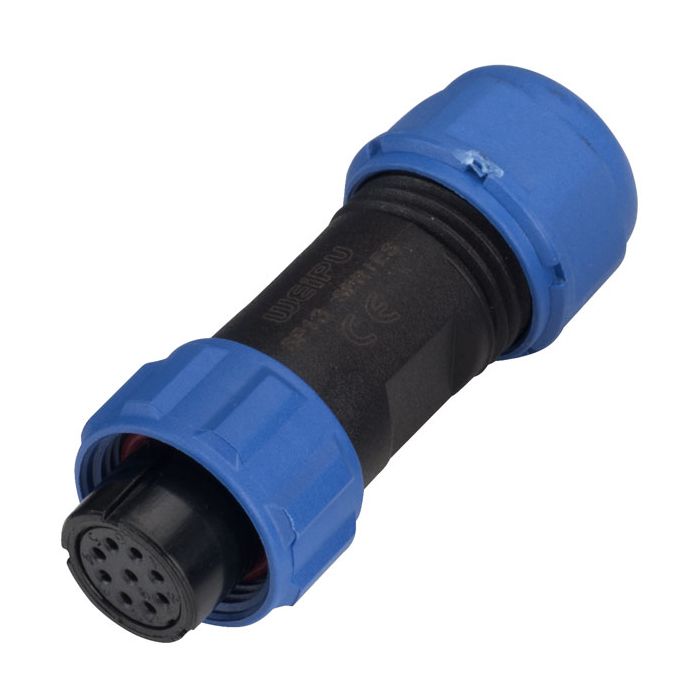

MEERPOLIG STEKER 6P FEMALE IP68
€ 7,50
€ 6,20
Artikelnummer
FM686816
- ArtikelnummerFM686816
- MerkCLIFF
- Aantal 5+ € 6,75 € 5,58
Features
• Cliffcon® 68 is an IP68 rated multipin connector for waterproof and rugged applications • IP68 for under water, outdoor and indoor • 2 to 9 gold-plated contacts (no 8 pin version) • Fixing thread M15 • Panel hole cut-out 13mm Ø • FM 686800: sealing cap for socket FM68680_ (must be ordered separately ) |
Technical Specifications |
Connector Locking System: | Screw |
Connection Type | Solder |
Degree of Protection: | IP68 |
Mechanical Operating Life, Min.: | 500 Cycles |
Temperature Range: | -25...+85°C |
Insulation Resistance: | 2000Ohm |
Material of Contact: | CuZn, Gold-plated |
Material of Housing: | Nylon 661) |
Cable Diameter (Female Plug): | 5...8mm |
1)fire resistance: V-0 |
|
Socket | Pole | UN | IN | Contact Ø | RC |
[A] | [V AC] | [A] | [mm] | [Ohm] | |
FM686802 | 2 | 250 | 13 | 1,6x2 | 2 |
FM686803 | 3 | 250 | 13 | 1,6x3 | 2 |
FM686804 | 4 | 200 | 5 | 1x4 | 5 |
FM686805 | 5 | 180 | 5 | 1x5 | 5 |
FM686806 | 6 | 125 | 5 | 1x6 | 5 |
FM686807 | 7 | 125 | 5 | 1y7 | 5 |
FM686809 | 9 | 125 | 3 | 0,7x9 | 10 |
UN = Rated Voltage, IN = Rated Current, RC = Contact Resistance |
