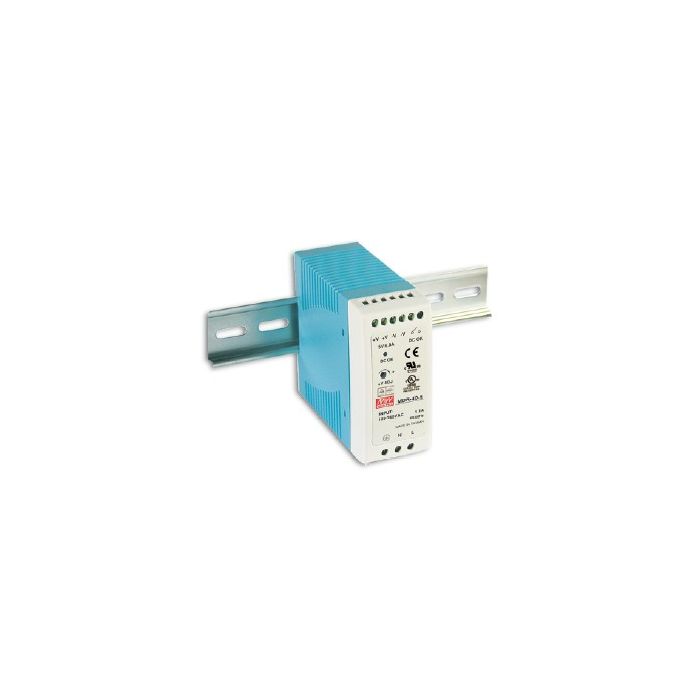

DIN-RAIL 40MM VOEDING 40W 48V/0.83A

MODEL MDR-40-48

OUTPUT:
DC VOLTAGE 48V
RATED CURRENT 0.83A
CURRENT RANGE 0~ 0.83A
RATED POWER 40W
RIPPLE & NOISE (max.) Note.2 200mVp-p
VOLTAGE ADJ. RANGE 48~56V
VOLTAGE TOLERANCE Note.3 +/-1.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%

INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89%
AC CURRENT (Typ.) 0.7A/230VAC
INRUSH CURRENT (Typ.) COLD START 60A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
