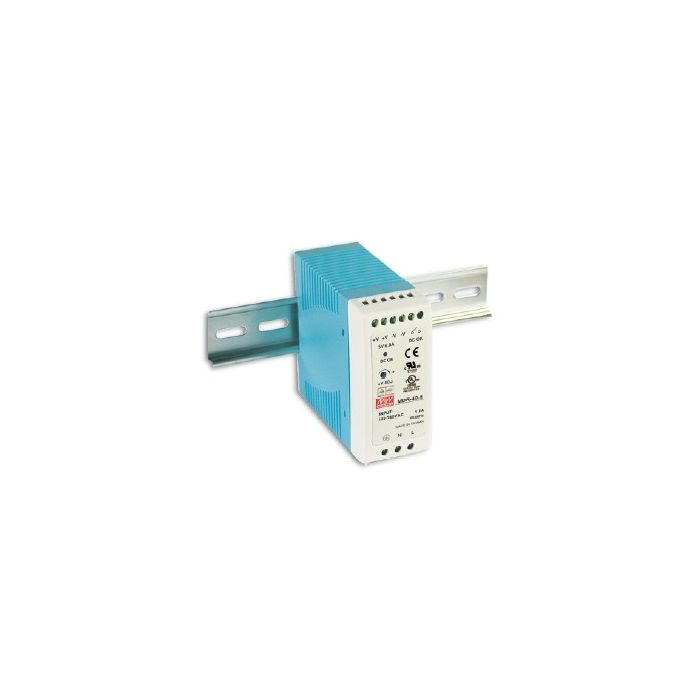

DIN-RAIL 40MM VOEDING 40W 24V/1.74A

MODEL MDR-40-24

OUTPUT:
DC VOLTAGE 24V
RATED CURRENT 1.74A
CURRENT RANGE 0~ 1.74A
RATED POWER 40W
RIPPLE & NOISE (max.) Note.2 150mVp-p
VOLTAGE ADJ. RANGE 24~30V
VOLTAGE TOLERANCE Note.3 +/-1.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%

INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88%
AC CURRENT (Typ.) 0.7A/230VAC
INRUSH CURRENT (Typ.) COLD START 60A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
